-10% Dual Tank Fuel Pump Kit

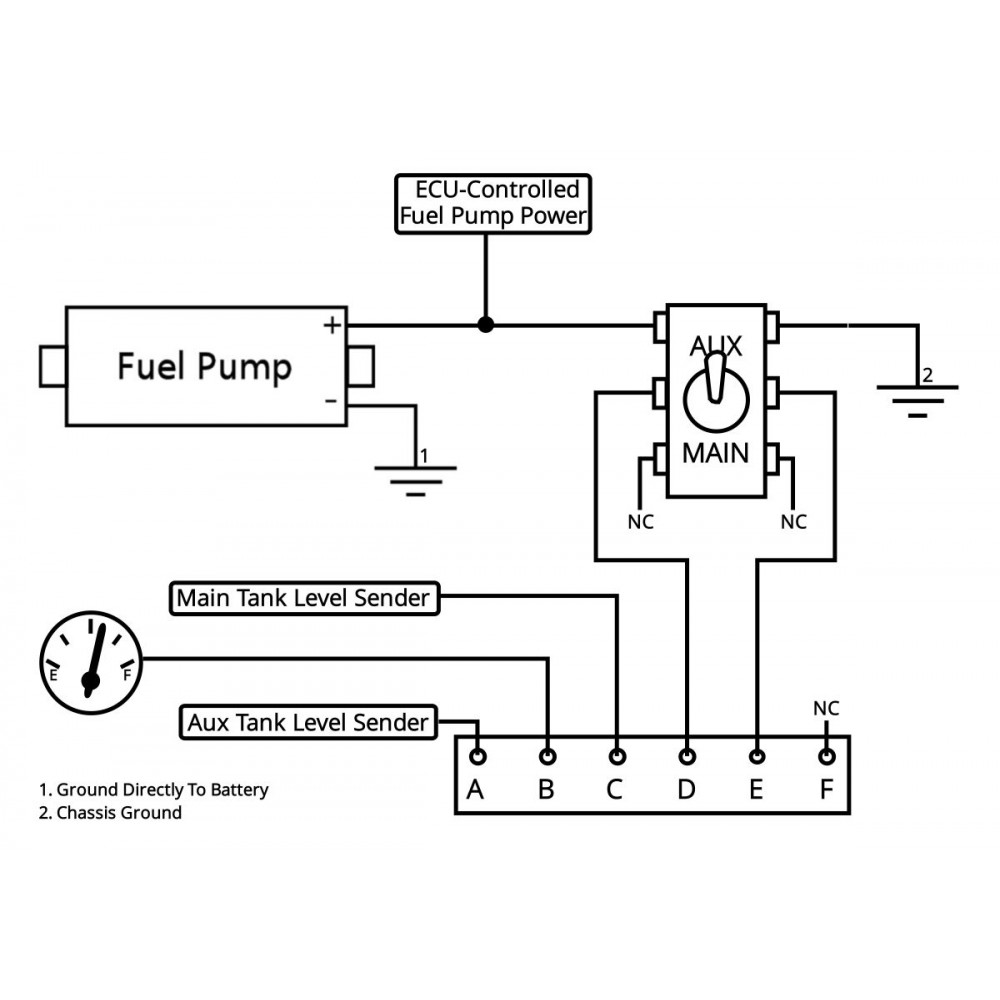

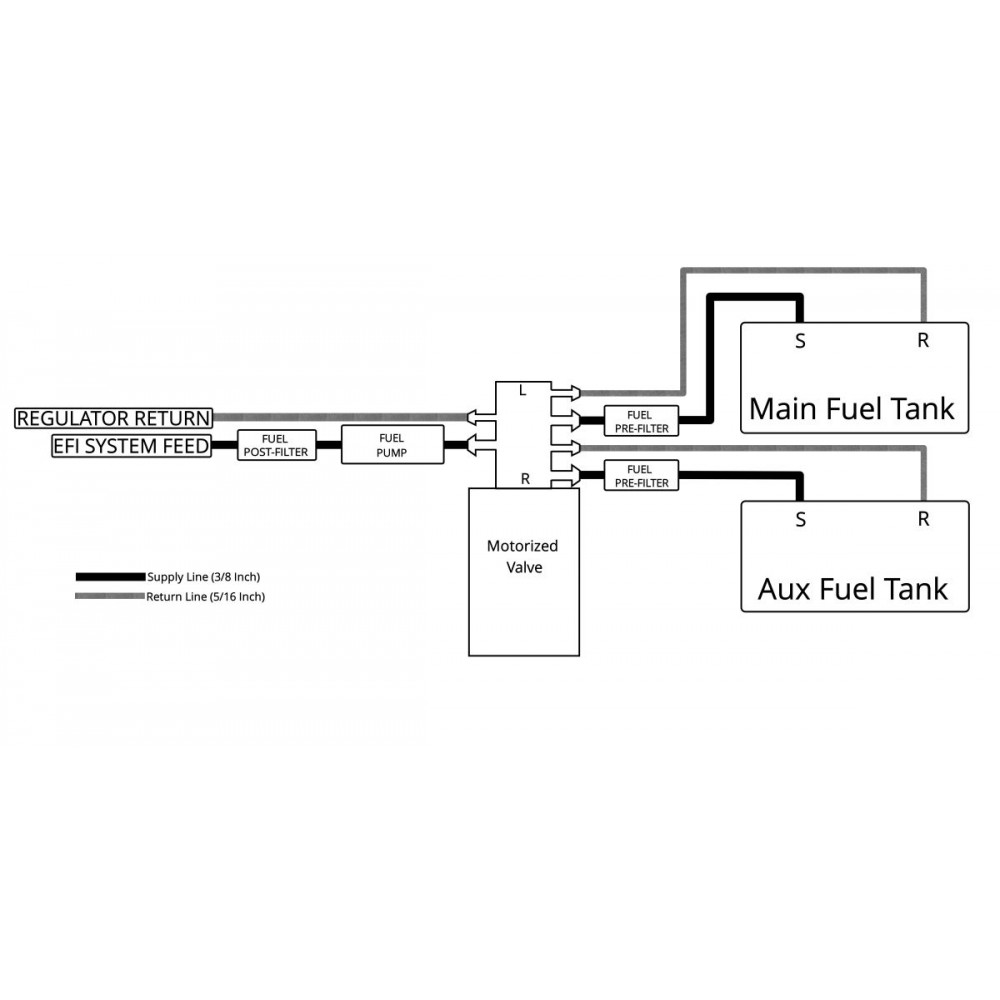

When upgrading vehicles with two fuel tanks to EFI a challenge is immediately encountered: Not only must a fuel source be selected but the return-style fuel regulator must return the fuel to the same tank. Further, if the vehicle has a shared fuel level gauge (as most do) then it is necessary to simultaneously switch the fuel source, fuel return and fuel level sender. This dual tank fuel system kit allows the installer to do precisely that.

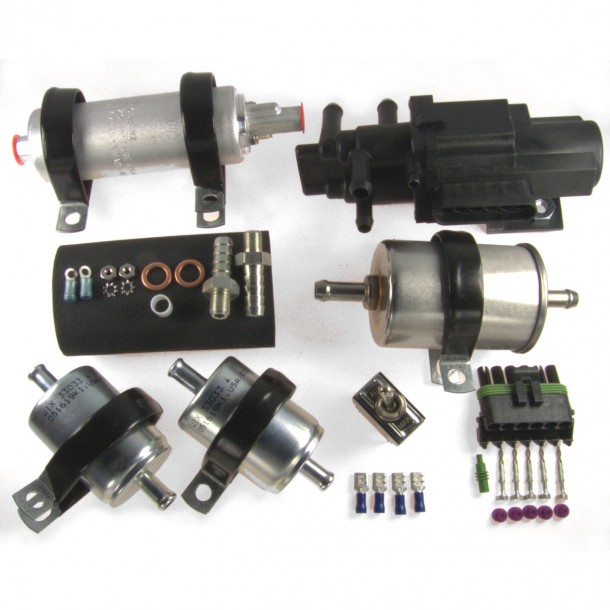

This kit includes:

  • TI Automotive (Walbro) 255 LPH Inline Fuel Pump with installation and mounting components
    (One for the single pump kit, two for the dual pump kit)
  • Motorized Valve for switching fuel source, return and sender
  • Tank Selection Switch (Main / Aux)
  • Pre Fuel Filter 20 micron (one for each tank)
  • Post Fuel Filter 10 micron
  • Mounting Clamps for Filters
  • Connectors for all electrical connections
  • Detailed instructions

Other materials required for installation:

Should I Pick The 1-Pump or 2-Pump Version?

Clearly, the single pump version is less expensive. It is also a good bit easier to install. And the single pump version should be completely adequate if your fuel tanks are located closely together so that the single pump can be mounted close to both tanks.

But having two pumps does have its benefits. While both kits use Walbro / TI Automotive GSL392 255 LPH Fuel Pumps (which are well known for their bullet-proof reliability) pumps, wiring, or the tank itself can have a failure. Having two pumps means you can always pull from the second tank. And if the fuel outlets on your tanks would require that your single pump be mounted more than a few feet (horizontally) from either tank, then putting a pump close to each tank can reduce the strain on the pump.

Not Sure? Review this product documentation before you buy!


Installation Guide
Dual Tank Fuel Pump System (Single Pump)


Installation Guide
Dual Tank Fuel Pump System (Dual Pump)

Fluid Fittings
Fittings IncludedYes
Inlet Size3/8 Inch Hosebarb
Return Size3/8 Inch Hosebarb
Fuel Pumps
Flow Rate (GPH)67 at 43.5 PSI, 62 at 60 PSI (13.5 Volts)
Flow Rate (LPH)255 at 43.5 PSI, 235 at 60 PSI (13.5 Volts)
Fuel SystemEFI
Fuel TypePump Gas/Race Gas
Fuel Filters
Element MaterialNon-Replaceable
Filter TypeOne Pre-Filter, One Post-Filter
Micron Filtration20 Micron Pre-Filter, 10 Micron Post-Filter
Mounting Bracket IncludedNo (Not generally required)
Outside Diameter2.16 Inch Diameter Post-Fiter; 1.94 Inch Pre-Filter
General
Also IncludedMechanical Fuel Pump Block-off Plate (Fits most Chrysler and Chevrolet applications)
ApplicationCarbureted vehicles switching to EFI system that includes pressure regulation
Emission Code3
OEM ReplacementNo
Unit of SaleKit
