-10% Sniper BBD EFI System for Jeep CJ 71-86

Holley Shows the Jeep CJ Community Some Love

Ok, so there are a ton of aftermarket parts out there for the Jeep CJ--too many to count. But who expected an EFI System this amazing to be released?

Sure, you could (or maybe already have) put a Weber carb on your Jeep. But that doesn't solve the cold start issues or the problems you face on especially steep climbs. Nor do you have to drive around with a box of jets if you are driving in vastly different altitudes.

Features:

  • Bolts directly to factory manifold
  • Connects directly to factory linkage
  • Mates directly to factory air cleaner assembly
  • Self-configuring, self-learning
  • Includes built-in fuel pressure regulator
  • Visually amazing 3.5-inch touchscreen provides both setup and monitoring

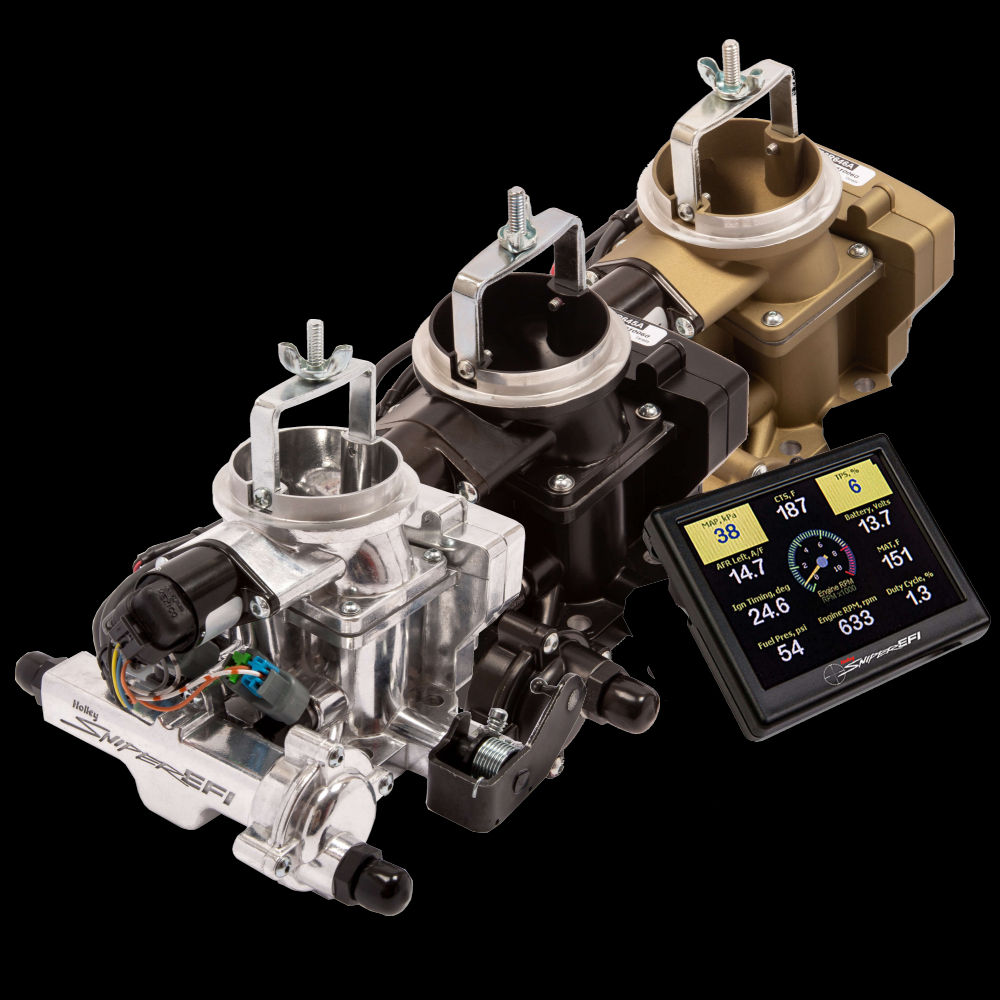

  • Available in Shiny Metallic (550-858), Ceramic Black (550-859), or Classic Gold (550-860)

Installation

The Sniper BBD solves all of that. Toss that old carburetor any any adapter plates because this bolts directly in place of the original BBD carburetor on the factory manifold and connects to the factory linkage. Yes, you will install an O2 sensor and Holley makes that easy with a clamp-on O2 sensor bung--no welding required. Screw in a coolant temperature sensor, wire up power, ground, and your ignition and you've done with the EFI system installation.

Configuration

Think the installation was easy? Then you will really love the configuration! A gorgeous 3.5-inch touchscreen display is included in the kit and lights up when you first key on the system. Select "Wizards" and be prepared to answer some questions so easy you'll feel like a genius. Questions like "How Many Cylinders" and "Engine Displacement". (Hint: If you need some help on that last one it's probably 258.) The Wizard completes the configuration and pre-programs a perfect start-up tune. By starting the engine and driving the tune just gets better with time--without you doing anything other than enjoying yourself.

Fuel System Options

True, that factory mechanical pump is not going to do the trick for your new Sniper EFI system but we've even managed to make that easy. Here are three great options:

  • Without a doubt, if you have a 71-86 Jeep CJ with the original or OE-replacement fuel tank then the single best fuel system alternative is this OE Style Fuel Module for Jeep CJ. If you order that then we also recommend this installation component kit so you'll have everything you need on installation day.
  • If you have a racing fuel cell with a 6- or 12-bolt flange around the filler neck then one of these Fuel Cell Tank Modules is ideal.
  • The Master Kit with inline fuel pump continues to be a cost-effective and universal solution. You can choose that when you add the EFI System to your cart, above.

You absolutely will want a Fuel Pressure Gauge. Those who don't install one with their EFI system are invariably the ones who end up needing it. Don't be that guy.

Ignition System Options

Let us be clear:  This Sniper BBD EFI System will work great with your existing ignition system.  But if you're crawling the outback miles from anywhere you want an ignition system that will not only get you over the mountain but back to Fort Home with no issues. And the perfect solution to that is the new Holley HyperSpark Ignition for Jeep 258 CID Engine. Specifically designed for the Sniper EFI System, this ignition is available with distributor, ignition box, and coil that are come out of the box with plug-and-play compatibility.

Other Options

There are some options that are available with the Sniper EFI System that you may never need. Still, we feel that it is important to point these out because they are part of what makes this far-and-away the finest throttle-body based EFI system on the market today. Even if you don't need these now they may be a game changer for you down the road.

Gauges and Displays

The included 3.5-inch Touchscreen Display may be all most Jeepers will ever need to monitor their status of their critical components. But in case you need more, be assured the Holley offers some amazing gauges and display upgrades for the Sniper BBD:

Holley Sniper Laptop Tuning Software

Easy-to-use, state-of-the-art tuning software that allows you (or your tuner) to fine-tune everthing in your Sniper system. And the really cool part? It's 100% FREE! That's right, you can simply download it here and install it on virtually any MS Windows-based PC. You can sneaker-net your configuration back and forth from the Sniper Handheld using the included SD Card or, for added convenience, purchase the handy Sniper Laptop Cable.

International Shipping

A note about express and international shipping of Sniper EFI System with Master Kit:  Because of the way that Holley created the retail packaging for their Master Kits it more than doubles the size of the box.  Although the Master Kit itself only adds 4 lbs to the weight of the shipment, the shipping company charges based on increased size.  Therefore, as a service to our customers who request express and international shipping of their Holley Sniper EFI Master Kit, we will reduce the size of the shipment by removing the master kit components from their retail packaging.  The reduction of shipping cost is automatically reflected in your shopping cart.  If you need your express/international shipment to include the original retail packaging, please notify us and we will be happy to do so at the higher cost of shipping.  Ground shipments are free, of course, and will include the original retail packaging.

Everyone says, "Buy From EFISystemPro.Com". Why?

When you buy it here at EFISystemPro.Com, that means we're on standby to answer your questions. Our level-3 tech support will gladly talk you through any challenge--just try to get that sort of personal service from a big-box auto performance store! Because here at EFISystemPro.Com, our look is high-end professional, but our service after the sale is home-town helpful!

Don't Miss This! FREE Sniper EFI T-shirt with every Sniper EFI system purchased from EFI System Pro!

This T-shirt is yours for $0.00 with your Holley Sniper EFI System purchased from EFI System Pro. Simply choose between Black and Dark Gray and designate your T-shirt size in the dropdown when adding the Sniper system to your shopping cart.

CLICK HERE for T-shirt product page


Check Out This Great Video!

Not Sure? Review this product documentation before you buy!


Owners & Installation Manual
Holley Sniper BBD EFI System


Quickstart Manual
Holley Sniper BBDEFI System


Wiring Tips
Holley Sniper EFI System

ECU
Boost ControlYes
DIS OutputsNone
FamilySniper
Fueling StrategySpeed Density
Includes Power HarnessYes
Injector DriversTwo
Internal DataloggingAll datalogging done via external CAN bus device such as 3.5-inch handheld (included), laptop software, or digital display.
Knock Control Channels0
Nitrous ControlYes
Number of Cylinders4, 6, or 8 Cylinder (Even Fire Only)
User Configurable I/OYes
User-Selectable MAP StorageNo
Water-Methanol ControlNo
Displays And Controllers
Auto BrightnessNo
CAN Bus CapableYes (Specific to Holley ECUs Only)
Case/Bezel FinishBlack
ConfigurableMonitor dozens of pre-configured metrics provided by the ECU, including sensors, air/fuel ratio, switched outputs, drive-by-wire data, and more.
Data LoggingYes
Display TypeLCD
FunctionsSetup, Monitor, Tuning
Gauge/Display Size3.5 Inch Rectangular
Internal StorageYes (SD Card)
TouchscreenYes
Throttle Bodies
Airflow Rate (CFM)370 CFM (at 3 Inches Hg)
Barrels (BBL)2
Gaskets IncludedYes
IAC Motor IncludedYes
Injectors IncludedYes
StyleThrottle Body Injection
TPS Sensor IncludedYes
Fuel Injectors
Flow Rate (Lbs / Hr)100 PPH x2
Fuel Pressure Regulators
Pressure RangeSet (58.5 PSI at idle)
RebuildableYes
StyleIntegrated in Throttle Body
Fuel Pumps
Fuel TypeMaster Kit Only: Gasoline
Fuel Filters
Element MaterialMaster Kit Only: Paper
Filter TypeMaster Kit Only: Inline
Micron FiltrationMaster Kit Only: Prefilter: 20 Micron / Postfilter: 10 Micron
Mounting Bracket IncludedMaster Kit Only: No
Outside DiameterMaster Kit Only: Prefilter: 1.94 Inches / Postfilter: 2.17 Inches
Harnesses
Harness Type7-pin Power/Ignition/Fuel Pump, 10-Pin I/O, Wideband O2, Coolant Temp, CAN Bus (All fixed to Throttle Body)
TerminatedYes
Sensors
TypeAir Temperature, 2 BAR MAP and Throttle Position (Integrated in TB); Coolant Temperature, Wideband O2
General
Also Included3.5-inch Touchscreen Display
Application1971-1986 Jeep CJ's with 258ci 6 Cylinder Engines
ColorShiny Silver (550-858), Black Ceramic (550-859), or Classic Gold (550-860)
Emission Code3
Unit of SaleKit
