Terminator X for Hilborn Individual-Runner EFI

Holley offers over 100 different Terminator X EFI Systems for various engines as well as universal applications. The Terminator X for Hilborn Individual-Runner EFI is designed specifically to be coupled with the Hilborn Individual-Runner EFI intake manifolds to provide the basis of a complete EFI system. As indicated by the word "Universal" in the name, this kit differs somewhat from other Terminator X EFI kits in that it does not include a configuration setup wizard and, hence, no 3.5-inch touchscreen display (as do nearly all other Terminator X kits.)

What's Terminator X?

If you are not familiar with Holley's Terminator X family of EFI Systems let us enlighten you a bit. These are standalone engine management systems that closely replicate some of Holley's most advanced engine management systems but at a much more budget-friendly price. This PDF gives a highly detailed comparison of the Terminator X and X Max to engines built using the Holley HP and Dominator ECUs. To summarize, Holley was able to leave out some features found to be less-necessary by the majority of users and, in doing do, slash the price of a full-featured EFI System by half.

Here are some of the features that are included in the Universal Terminator X MPFI Kit for Hilborn EFI Systems:

• Eight High-Impedance Injector Drivers
• Configuration and monitoring via Terminator PC software (free download) and included CAN-to-USB adapter cable
• Four configurable inputs and outputs
• Boost Control*
• Single-Stage Progressive Nitrous Control*
• Staging Assist*

• *Requires hardware not included with Terminator X system to implement

What is included in the Universal Terminator X MPFI Kit for Hilborn EFI Systems

The Terminator X ECU in this kit includes an on-board 1-BAR MAP sensor or you can add an external MAP sensor for boosted applications. On-Board Diagnostic LEDs display the status of ECU Power, Engine Run, Wideband Status, TPS Calibration, Crank Signal, and Cam Signal

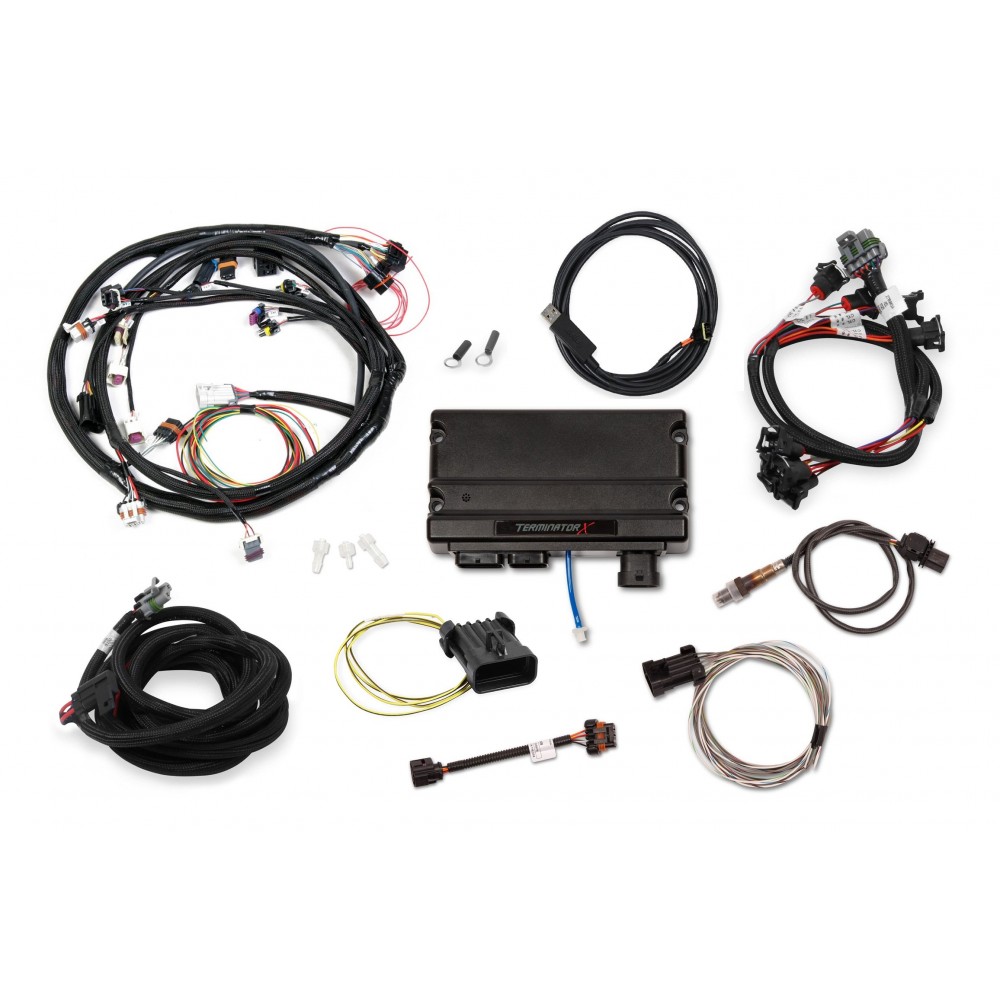

In addition to the ECU the kit the kit include the following:

• ECU Power Harness
• Application-Specific Main Harness
• CAN-Bus to USB Adapter Cable (for connection to Windows-based laptop (not included.)
• Custom 4-input / 4-output harness pre-configured for two Electric Fans, A/C Kick, and A/C Shutdown
• Bosch LSU 4.9 Wideband O2 Sensor
• Custom sensor setup and connectors for commonly available sensors and IAC make sourcing and installing reliable parts a breeze
• Holley Universal 10-pin Ignition Connector is plug-and-play with Holley's Dual Sync Distributor as well as other popular Holley ignition kits and adapters.
• EV1-style Injector harness

What Else Will I Need?

This Terminator X EFI Kit is made specifically to be used with a Hillborn Individual-Runner EFI intake manifold. It is always most cost-effective to purchase these as a EFI + manifold "system", when one is available for your application. Our product page for the Hilborn EFI Terminator X System for Big Block Chevrolet provides much more precise details on what is required to complete your Hilborn EFI system installation. Have a look there for more details.

Not Sure? Review this product documentation before you buy!

Note: References to the Terminator X 3.5-inch Touchscreen LCD Display in the documents below should be disregarded since no display is not included with this particular Terminator X kit.


Quickstart Manual
Holley Terminator X and X Max EFI Systems


Tuning Manual
Holley Terminator X and X Max EFI Systems


Wiring Diagram
Holley Wiring Harness for Universal Engine
