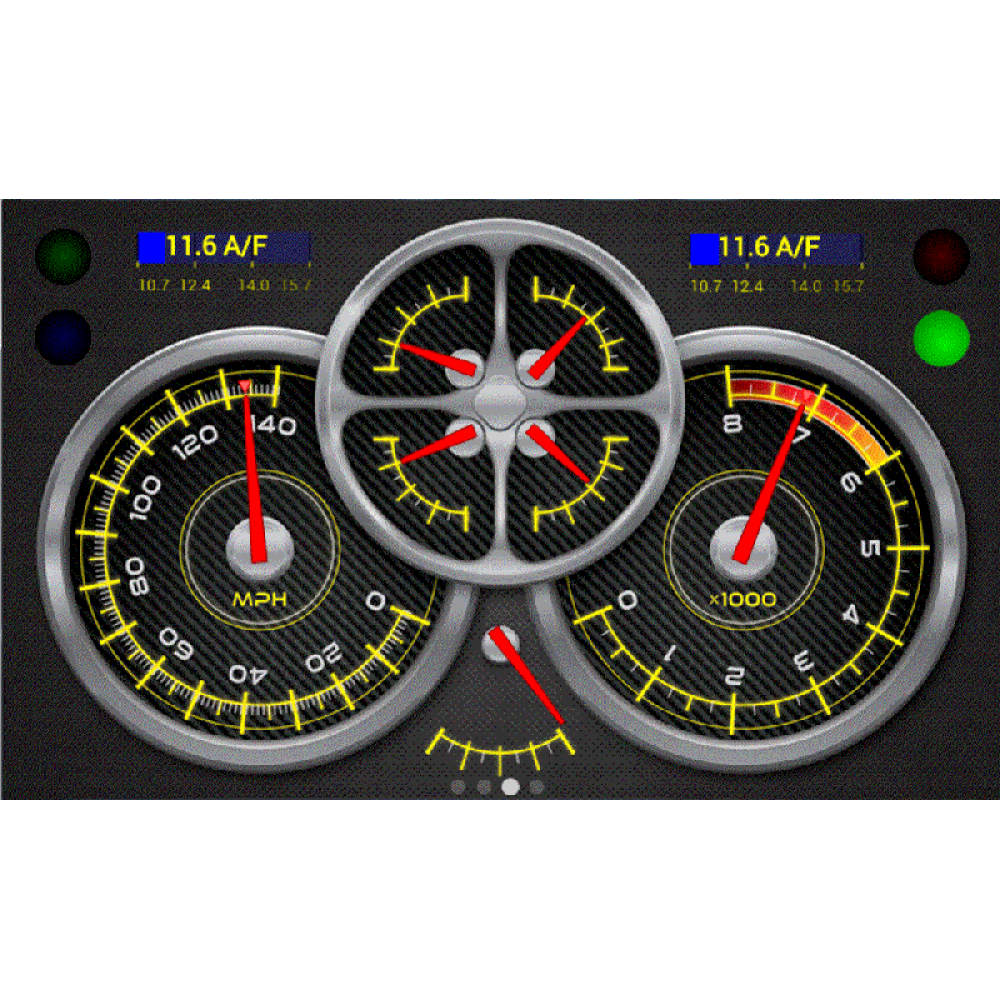

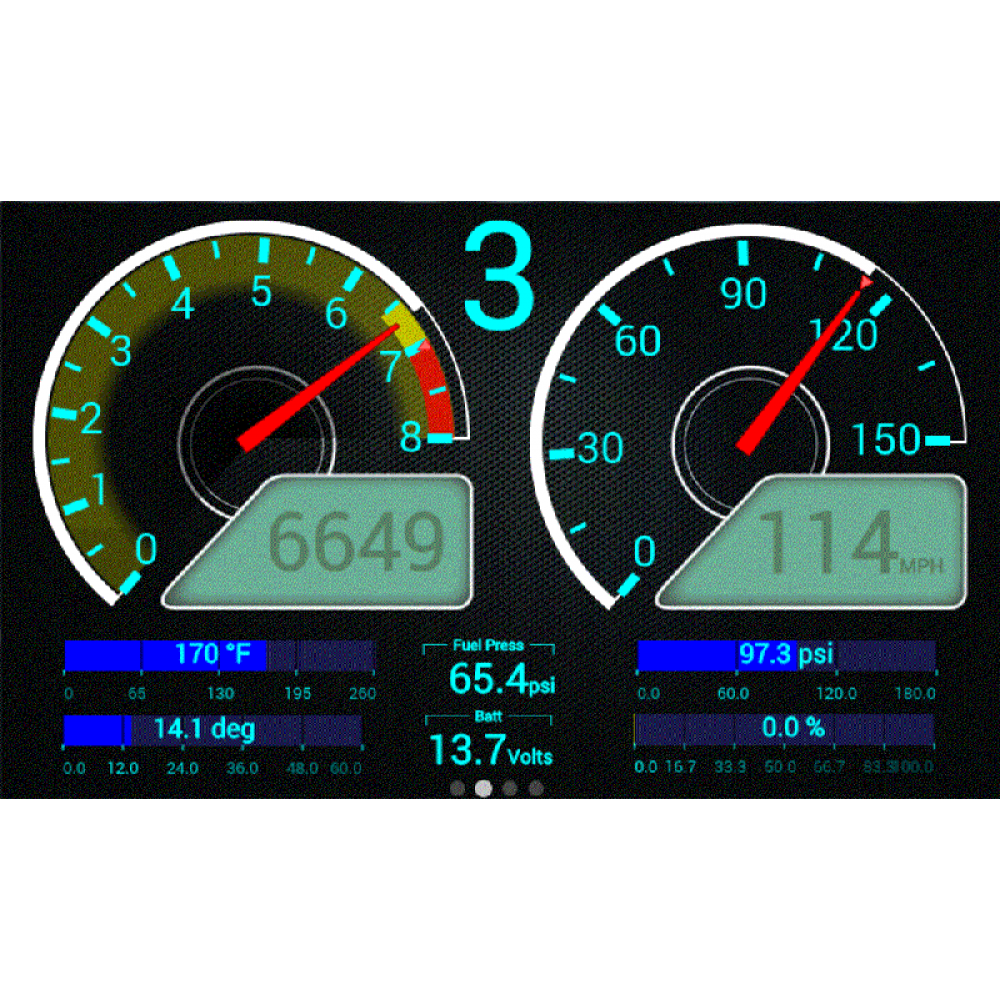

The Holley Digital Dash is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user defined alarms, configurable shift lights and can control on screen playback of your EFI data logs.

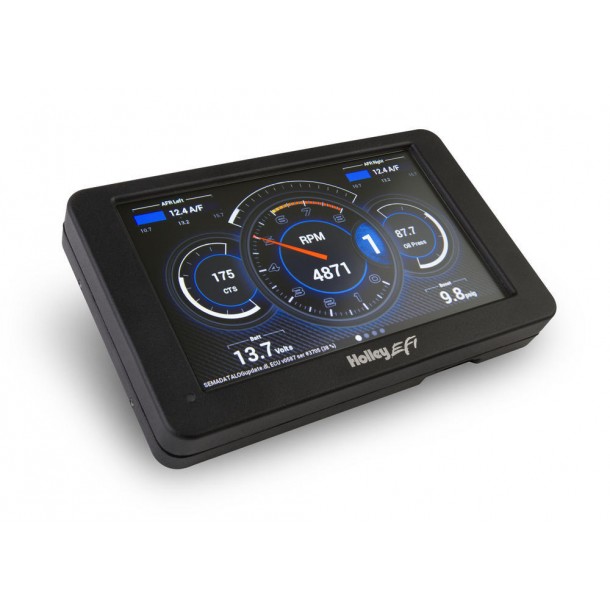

The Holley Digital Dash externally measures 7.5" wide, 4.625" tall and 1" deep which makes it a compact, customizable dash for use in a variety of motorsports applications. The Dash features a 7" (Diagonal) low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun, plug and play connection to all Holley systems as well as a weather proof aluminum housing featuring flexible mounting options. Monitor the power of your Holley system at a glance!
Add GPS Capability, Get Speedometer and More!
Adding GPS capability to your digital dash isn't mandatory, but the small upcharge for the optional GPS antenna module is a no-brainer! By adding this module you not only get Speedometer capability but other capabilities as they are added.
Optional I/O Adapter
Would you like to get an extra 10 channels to use for inputs or outputs? Simply add the Digital Dash I/O Adapter and get inputs you can monitor or datalog on the Digital Dash, or outputs that you can drive using on-screen digital switches.
Works With Holley Sniper EFI System!
Are you seeing all of this gorgeous display goodness and wondering if it will work with your Sniper EFI System? Good news--it will! A simple firmware update is required to use this display with the Sniper EFI System but if you simply let us know when you purchase your 7.5-inch Digital Dash that you will be using it with the Sniper EFI System then we will ship yours with the proper firmware already installed! Parameters not monitored by the Sniper EFI System can be monitored by this dash through the use of the Digital Dash mentioned above. Plus, because the Digital Dash has a twin-connector it allows a second CAN bus device (the 3.5-inch handheld Touchscreen LCD or CAN-to-USB Adapter) to be connected.
Note that when used with the Sniper EFI System the 7.5-inch Digital Dash does not perform tuning and data-logging functions as it does when used with the Terminator EFI or LS systems or with a HP or Dominator ECU. Also the digital dash switches are not available when used with the Sniper EFI System.
Now Available In Stand Alone Version!
The demand for the Holley Digital Dash has been so amazing we realized that others would want in on this too. And now any vehicle can take advantage of the Holley Digital Dash with the new stand alone version. This opens the door for use on carbureted race cars, junior dragsters--any vehicle that might not have a Holley ECU. As a bonus, the new stand alone version includes a GPS Speedometer!
Check Out This Video On The 7-Inch Digital Dash
Not Sure? Review this product documentation before you buy!
User Manual
Holley Digital Dash
| Displays And Controllers | |
| Auto Brightness | Yes |
| CAN Bus Capable | Yes (Specific to Holley ECUs Only) |
| Case/Bezel Finish | Black |
| Configurable | Displays as many as 132 different Pre-Programmed or User Configurable Outputs from Holley ECU. Display as needle gauges, needle/data gauges, digital gauges, bar gauges. Set up switch panels for remote switching of Holley ECU triggers. |
| Data Logging | Yes |
| Display Type | Low glare, high brightness, full color (800x480 Resolution) |
| Functions | Monitor, Tuning |
| Gauge/Display Size | 7.5 Inch Overall Width with 7 Inch Diagonal Display |
| Internal Storage | Yes (SD Card) |
| Touchscreen | Yes |
| General | |
| Also Included | Can Bus Adapter Harness, Mounting Fasteners |
| Application | Universal |
| Height | 4.625 Inches Tall |
| Length | 1 Inch Deep |
| OEM Replacement | No |
| Unit of Sale | Each |
