New -10% Terminator X Stealth Universal 4BBL TBI Systems

Terminator X Throttle Body Injection (TBI) EFI Systems are similar to the original Terminator Stealth EFI Systems but feature the much more budget-friendly Terminator X and Terminator X-Max ECU rather than the HP and Dominator ECUs of the original Terminator EFI Systems.

If you're familiar with the Holley EFI product line you might be asking at this point why Holley needs a budget-friendly TBI EFI System.  After all, they are pretty much ruling that market with their Sniper EFI Systems. But, for those who need it, the Terminator X Stealth EFI System, along with the original Terminator Stealth EFI System, meet some very unique requirements.   First, they provide the ability to control electronic transmission applications, something that will never be in the Sniper's wheel-house.  Second, for those who might want to do coil-on-plug ignition, the Terminator and Terminator X Stealth EFI Systems provide a path to this functionality. Again, this will never be done with a Stealth EFI System.

By adding the Terminator X Stealth to the existing Terminator TBI and Terminator Stealth TBI EFI Systems, Holley has dropped the price of admission to this advanced level of throttle body injection by hundreds of dollars while sacrificing features that the majority of users will never miss. To see a very detailed listing of the differences in capability between the Terminator X/X-Max and the HP/Dominator ECUs used by the original Terminator TBI and Terminator Stealth TBI EFI Systems, look here.

Terminator X Unique Features

Besides transmission control options and the capability to offer coil-per-plug ignition upgrades, the Terminator X piles on by offering a big 950 CFM flow capability. That's more than even the Sniper XFlow and puts this throttle body squarely in the range to flow enough for 800 NA horsepower (though you'll want to opt for the 8-injector version if you're looking to produce this kind of power.) While the on-board MAP sensor is limited to 1 Bar it is still possible to add your choice of external MAP sensors and incorporate blow-through or draw-through boost to your engine.

Just as noteworthy is the fact that the Terminator X Stealth TBI EFI System uses an external ECU that is safely located in the chassis of the vehicle. For folks who are especially concerned about the potential impact of radio-frequency or electro-magnetic interference, this is great news and is likely worth the modest difference in price between comparable entry-level EFI systems with the ECU co-located in the throttle body.

Here are some other features:

  • Easy to install
  • No computer experience required
    • Handheld tuner included
    • Simple multiple choice set-up wizard
  • Self-tunes while you drive
  • Optional Laptop Tuning capability (no cost--free download.)
  • Available in Polished, Hard Core Gray, or Classic Gold Throttle Body

Fits all standard square flange intake manifolds. Connections for Ford, GM TH350 and 700R4, and other transmission linkages.

While similar in scope to the Sniper EFI systems, the Terminator X TBI systems have some features that set them apart from Sniper. To name a few:

  • Remote-Mounted ECU typically much less sensitive to radio frequency interference (RFI)
  • Capability to drive Holley EFI Fuel and Oil Pressure gauges*
  • Knock Sensor Capability*
  • Fully Programmable I/O
  • Customizable Sensors
  • Alpha-N Load Sensing
  • More Advanced Boost Control
  • Staging Assist
  • Transmission Control
  • Timing Control Compatibility with GM HEI or Ford TFI Ignitions*

*Requires additional hardware not included in the basic Terminator TBI system.

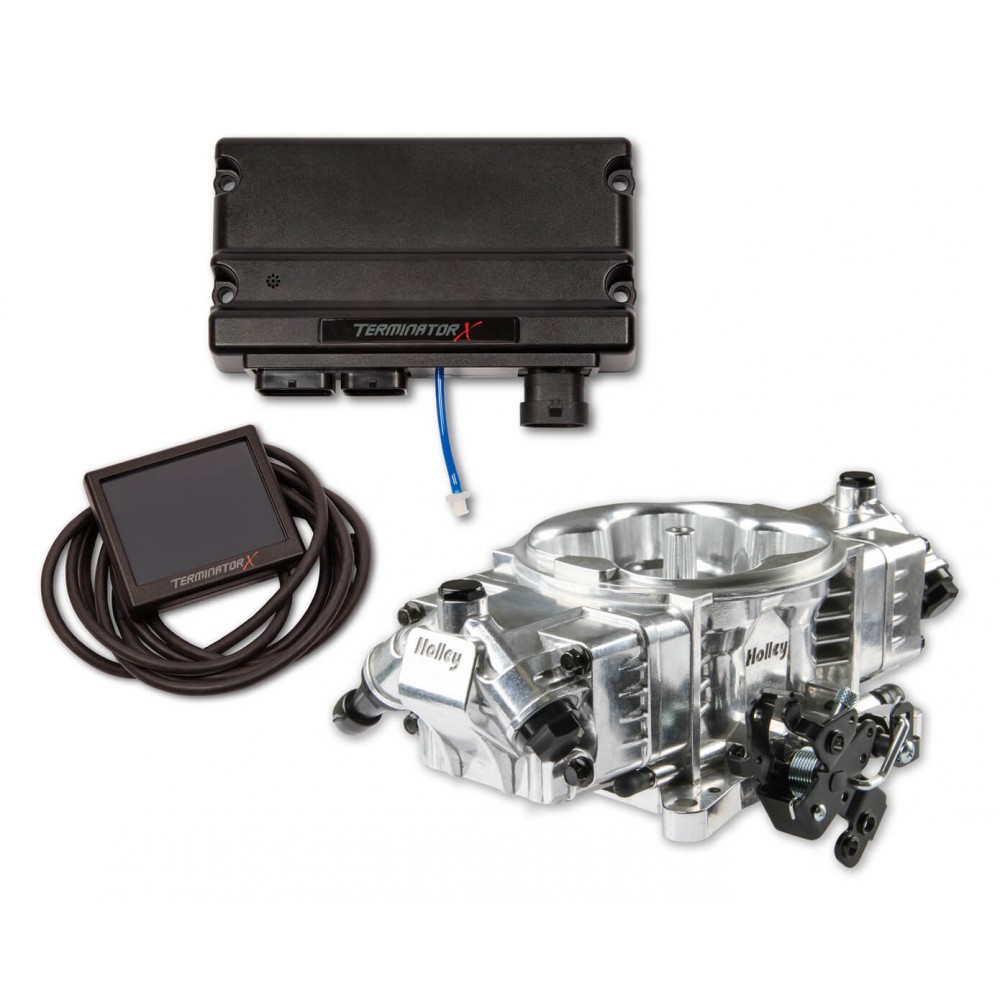

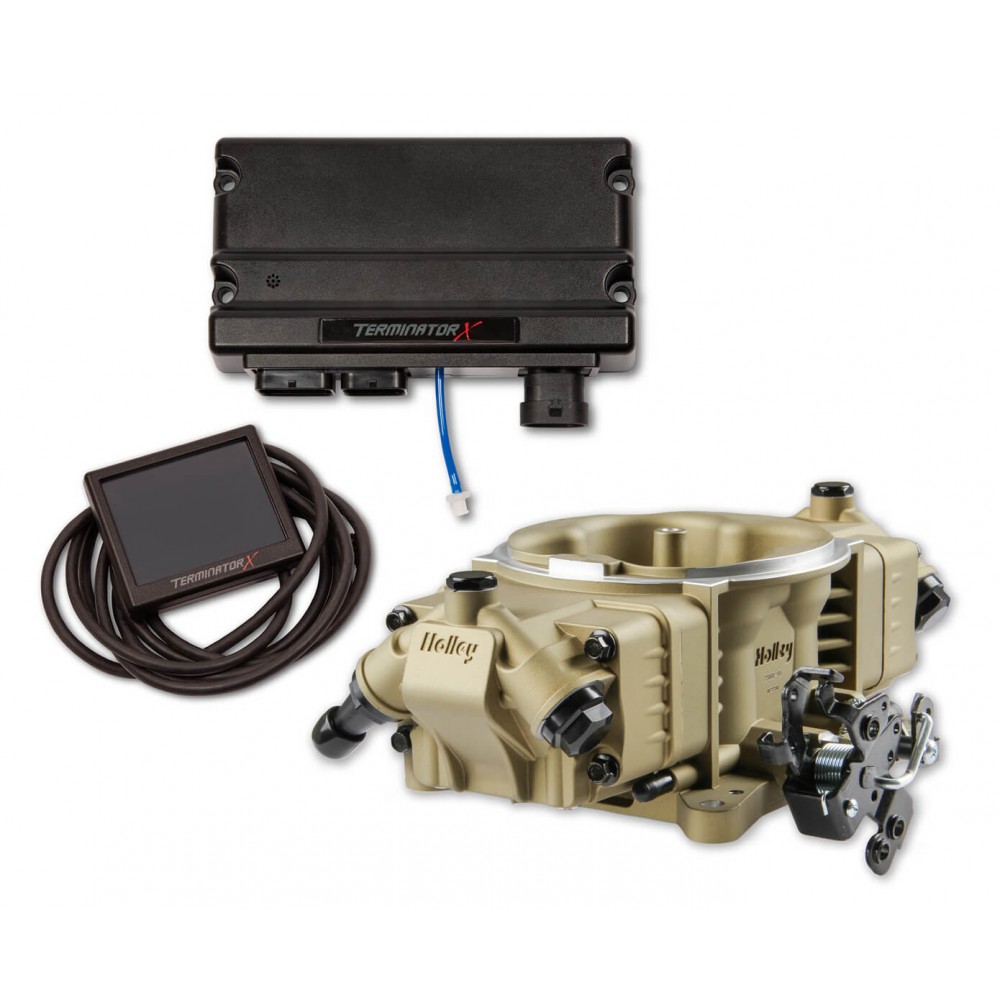

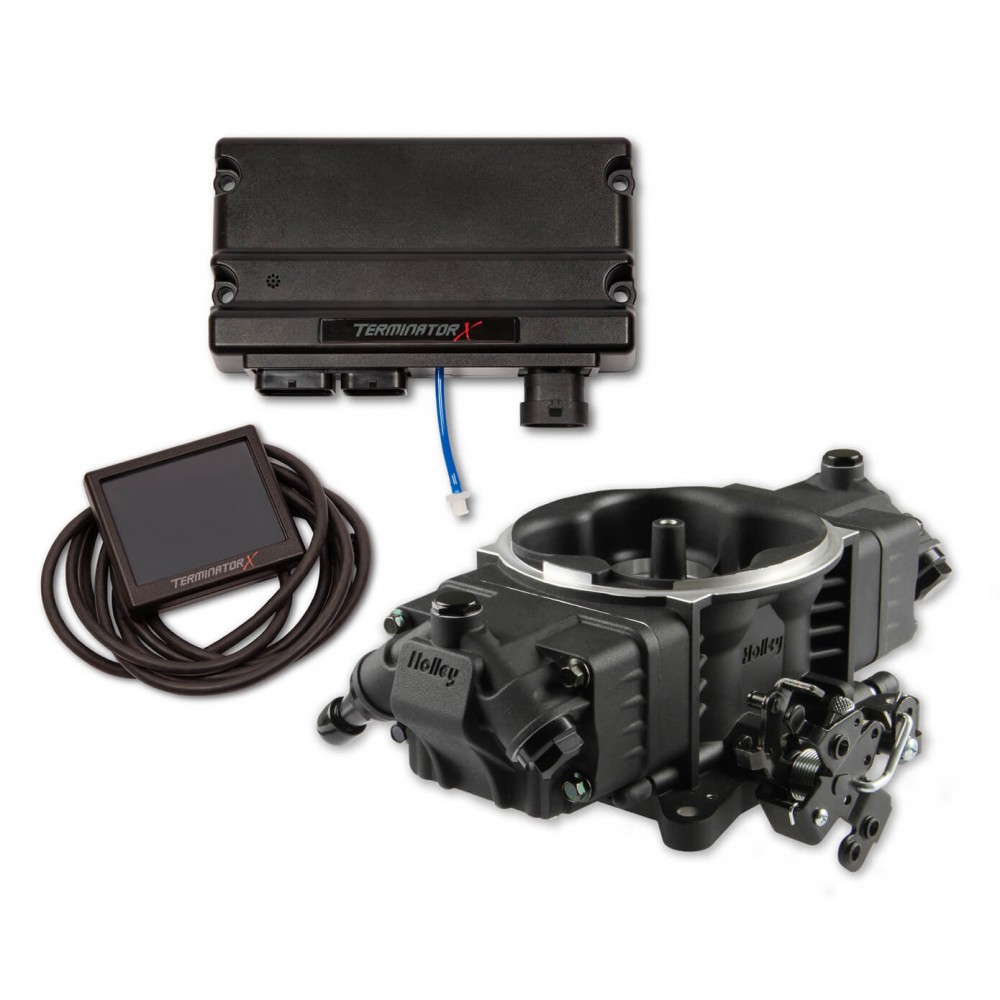

What's Included

The Each Terminator X EFI System includes the following:

  • Stealth Throttle Body with:
    • 100 PPH Fuel Injectors (@ 60 PSI) (x4 or x8)
    • 1-BAR MAP Sensor
    • Throttle Position Sensor
    • Idle Air Control (IAC) System

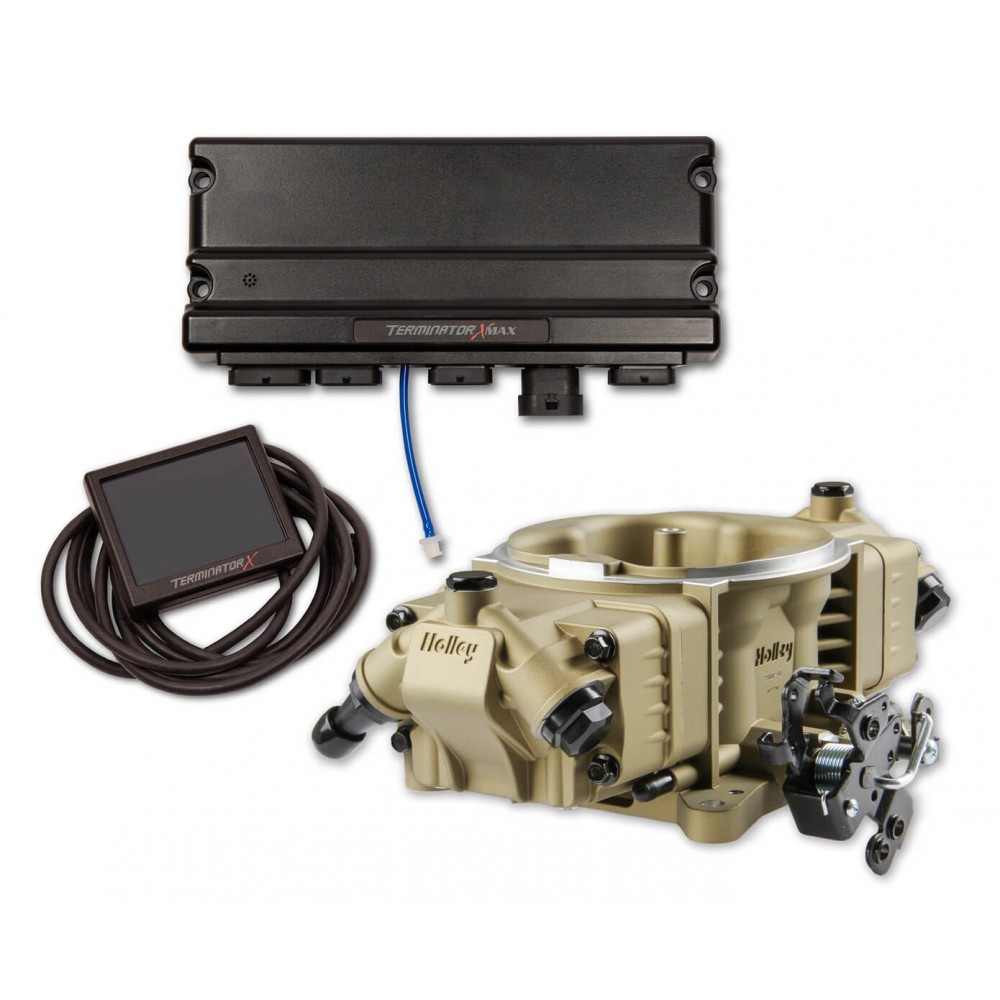

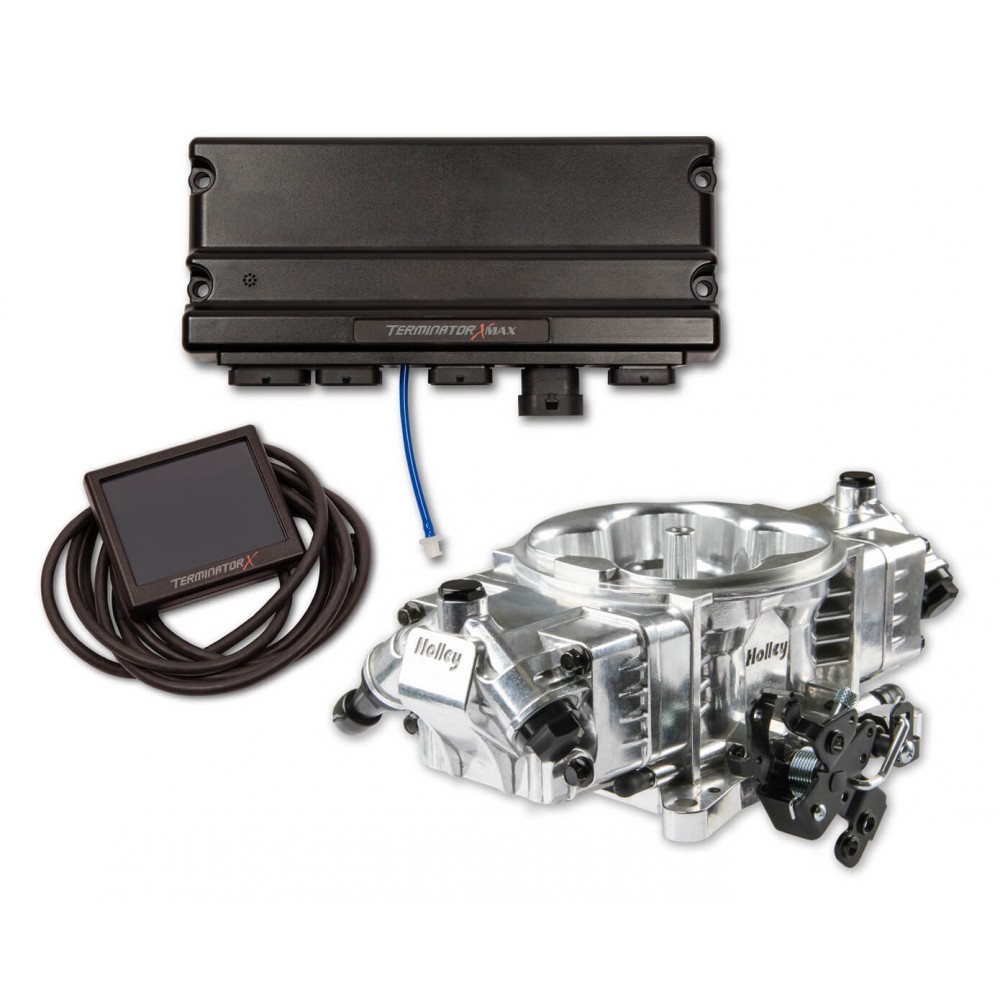

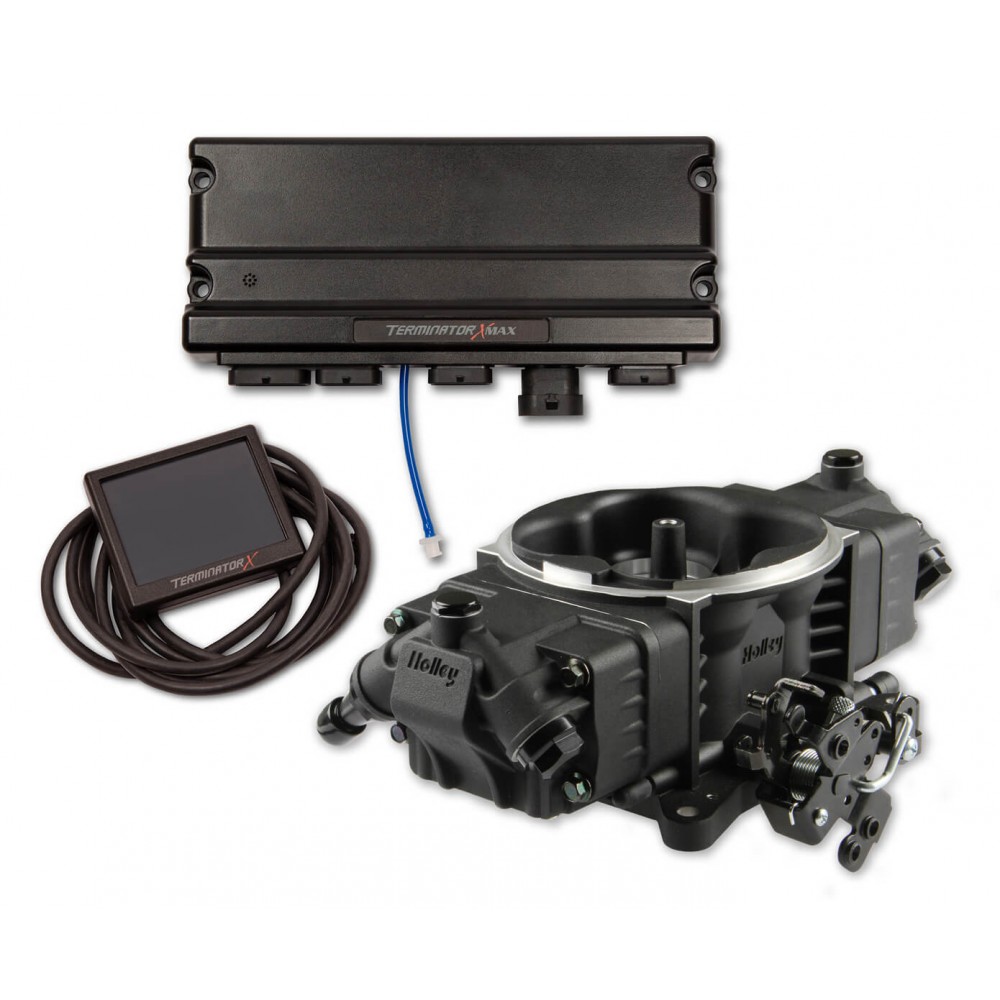

  • Holley Terminator X® or Terminator X-Max® ECU
  • Bosch Wideband Sensor and Weld Bung
  • Coolant Temperature Sensor
  • 3.5-inch Handheld LCD Touchscreen Display
  • Main Wiring and Power Harness
  • I/O and Ignition Adapter Harnesses
  • Brackets, Gaskets, and Fasteners

What Else Will I Need?

Required:  EFI Fuel System with

  • EFI Fuel Pump
  • Pre- and Post-Pump Filters
  • Fuel Pressure Regulator (Return-Style)
  • Associated Hose, Hose Ends, Clamps, Adapters, Etc.

Recommended:

Optional: Components to control ignition timing.

Available With Transmission Control

Owners of vehicles with the GM 4L60E, 4L65E, or 4L80E transmissions are really going to like this--the Terminator Universal Throttle Body EFI System is available with transmission control for these popular transmissions. Easy setup on the handheld display using the same setup wizard that creates the configuration for EFI control. Once configured you can simply drive and enjoy or use the handheld to fine-tune the upshift and downshift points, WOT upshift, torque converter clutch parameters, and more. You can even tune the line pressure vs. TPS or MAP for each gear!  Installing this on a Ford with a 4R70W/4R75W electronic transmission?  Contact us--we can make that work for you too!

Fuel System Upgrade Options

You probably recognize that you need to upgrade your fuel system if you're upgrading from a carburetor or the old GM throttle-body injection to this Terminator X TBI kit. Fortunately, you have a lot of great options! We have fuel pump modules to fit a broad assortment of gas tanks as well as complete EFI fuel tank systems fit many popular muscle cars and trucks. If you have any questions at all, just contact us and we can help design a fuel system that is perfect for your application!

Not Sure? Review this product documentation before you buy!


Owners Manual
Holley Terminator X 4-BBL Throttle Body Fuel Injection System

ECU
Boost ControlYes (Additional Hardware Required)
DIS OutputsYes (Harness Upgrade Required to Access)
FamilyTerminator X
Fueling StrategySpeed Density, Alpha-N, or Combination
Includes Power HarnessYes
Injector DriversEight
Internal Datalogging4GB
Knock Control ChannelsYes (Sensor Required to Access)
Nitrous ControlYes (Additional Hardware Required)
Number of Cylinders4, 6, or 8 (Even Fire Only)
User Configurable I/OYes
User-Selectable MAP StorageNo
Water-Methanol ControlYes (Additional Hardware Required)
Displays And Controllers
Auto BrightnessNo
CAN Bus CapableYes (Specific to Holley ECUs Only)
Case/Bezel FinishBlack
ConfigurableMonitor dozens of pre-configured metrics provided by the ECU, including sensors, air/fuel ratio, switched outputs, drive-by-wire data, and more.
Data LoggingYes
Display TypeLCD
FunctionsSetup, Monitor, Tuning
Gauge/Display Size3.5 Inch Rectangular
Internal StorageYes (SD Card)
TouchscreenYes
Throttle Bodies
Airflow Rate (CFM)950 CFM
Barrels (BBL)4
Gaskets IncludedYes
IAC Motor IncludedYes
Injectors IncludedYes
StyleThrottle Body Injection
Throttle Bore Diameter (ea)44.45mm
TPS Sensor IncludedYes
Fuel Injectors
Flow Rate (Lbs / Hr)100 PPH (at 60 PSI)
Harnesses
Harness TypePower Harness, Main Harness, TBI Injector Sub-Harness, I/O Harness, Ignition Adapter. Transmission Harness included on transmission control version
TerminatedYes
Crank Timing
Sensor Harness IncludedNo (Ignition Adapter Only)
Sensors
Type1 BAR MAP (Internal), Throttle Position (Integrated in TB); Coolant Temperature, Wideband O2 and Air Temperature Sensor; Fuel Pressure Sensor optional, not included. External MAP to 5 Bar options, not included.
General
Also Included40-Amp Relay.
ApplicationUniversal (Requires intake manifold for square bore carburetor or adapter there-to)

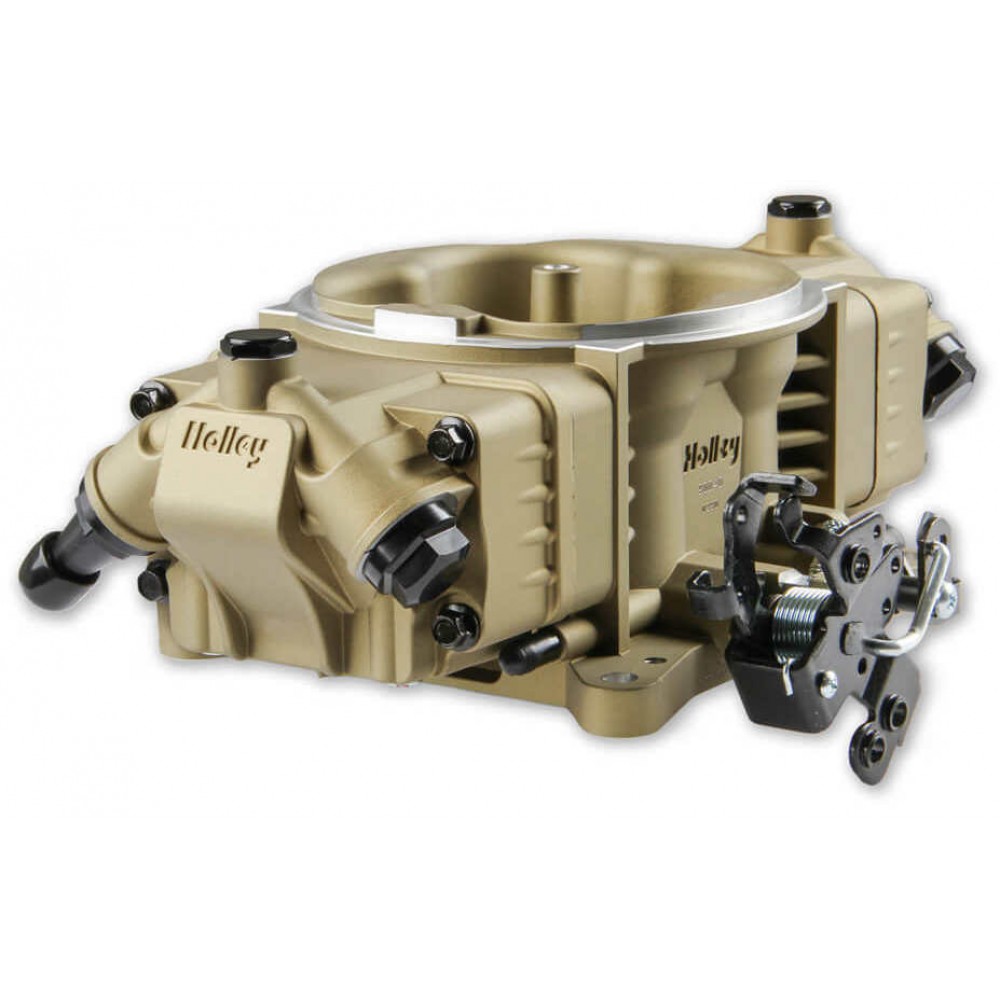

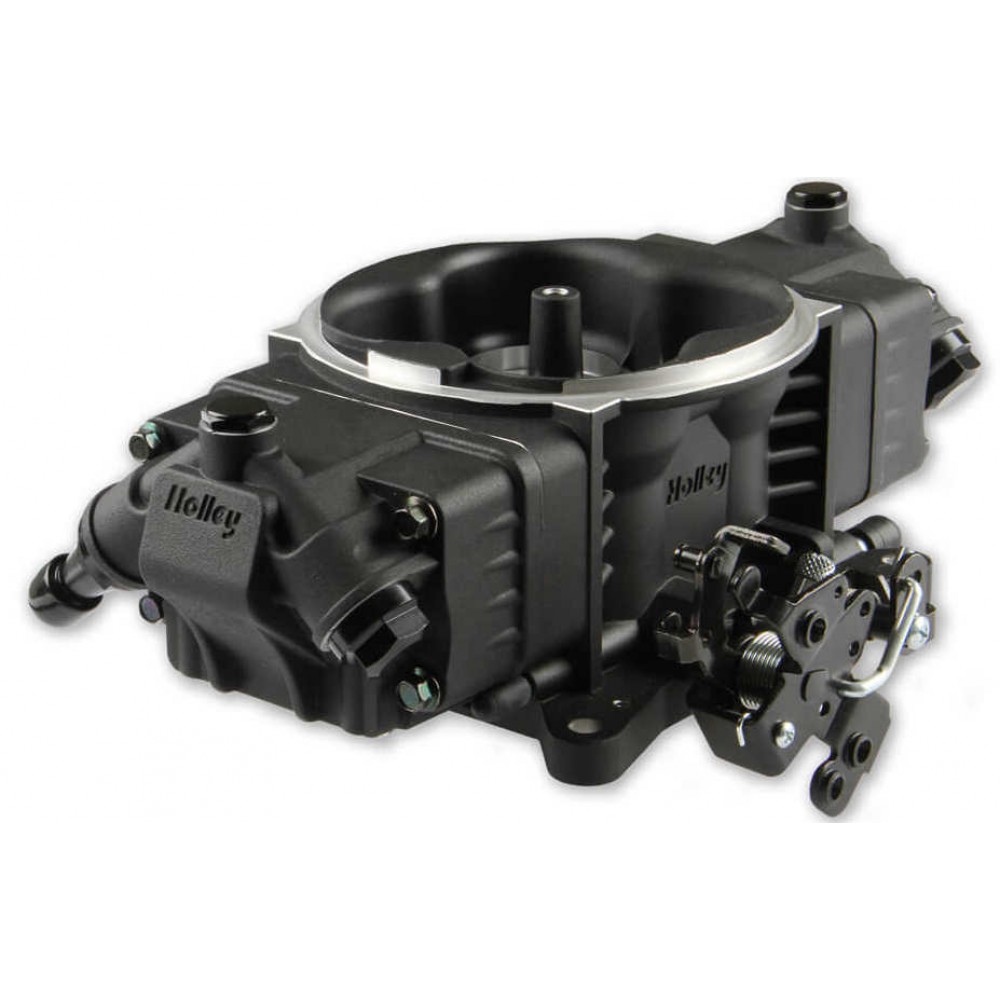

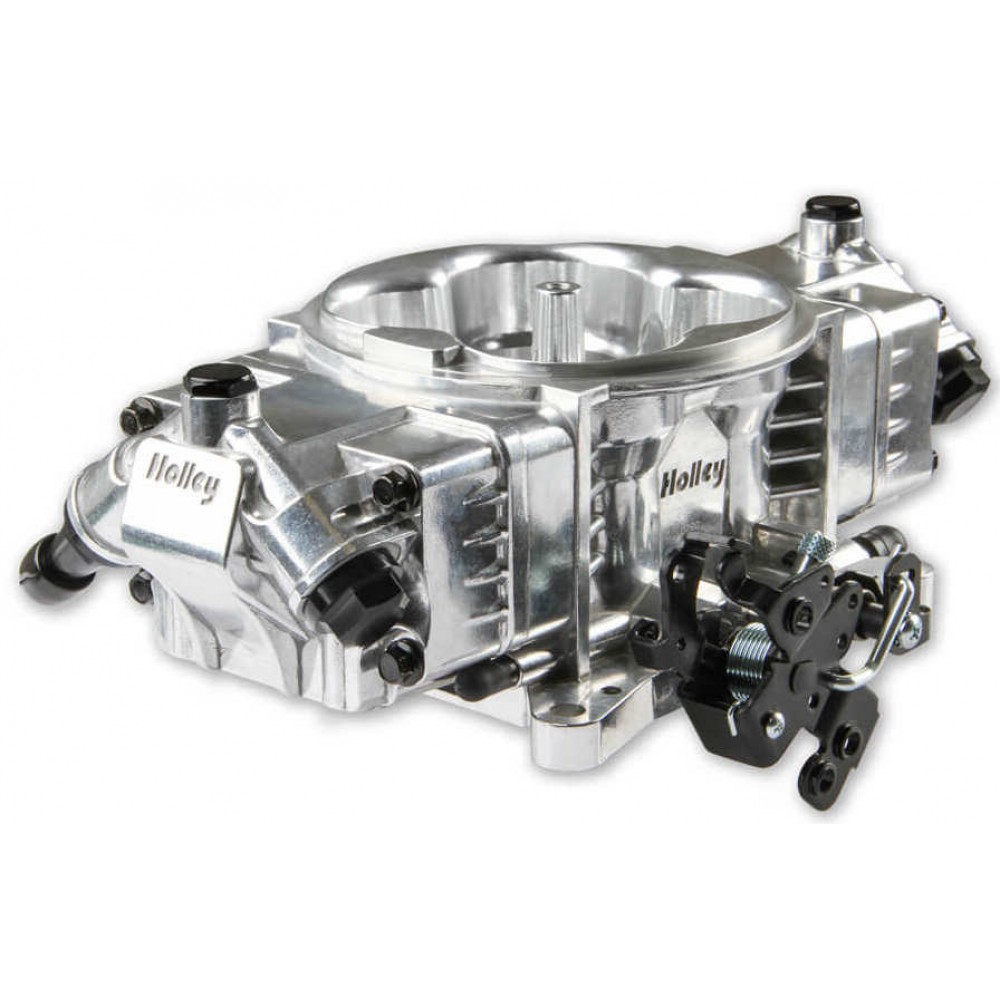

ColorAvailable in Polished, Hard Core Gray, or Classic Gold Throttle Body
Emission Code3
Unit of SaleKit
