Terminator Throttle Body Injection (TBI) EFI Systems were Holley's original 4150-carburetor replacement EFI Systems. Predating the Sniper EFI System, these include one of Holley's high-end HP or Dominator ECU's mated with a 4-barrel throttle body with four 80 pound-per-hour injectors. Air flow is an impressive 950 CFM, making this an appropriate choice for naturally aspirated engines up to about 600 HP or boosted engines to about 480 HP (gasoline.) Optionally, an injector upgrade is available that will allow naturally aspirated horsepower levels up to the limit for 950 CFM of airflow (roughly between 700 and 800 HP) and over 1000 HP boosted.
- Easy to install
- No computer experience required
- Handheld tuner included
- Simple multiple choice set-up wizard
- Self-tunes while you drive
- Optional Laptop Tuning capability (no cost--free download.)

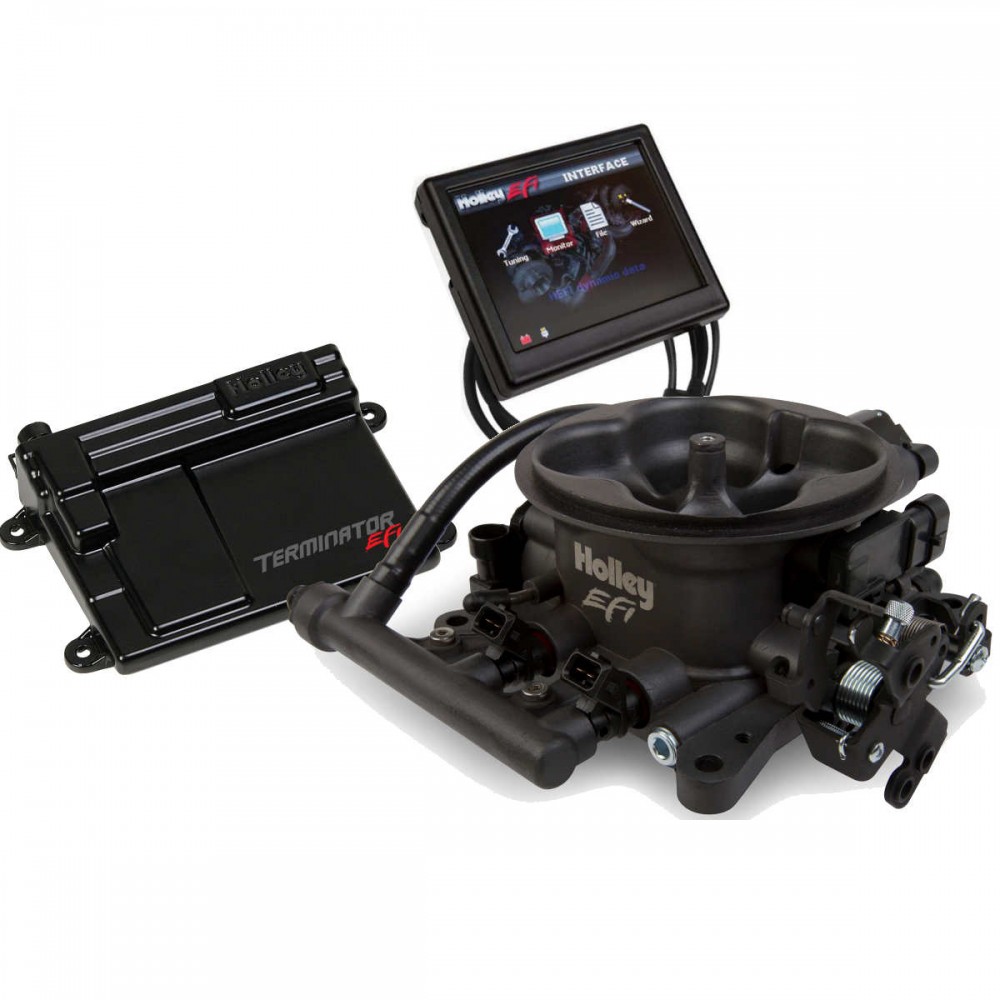

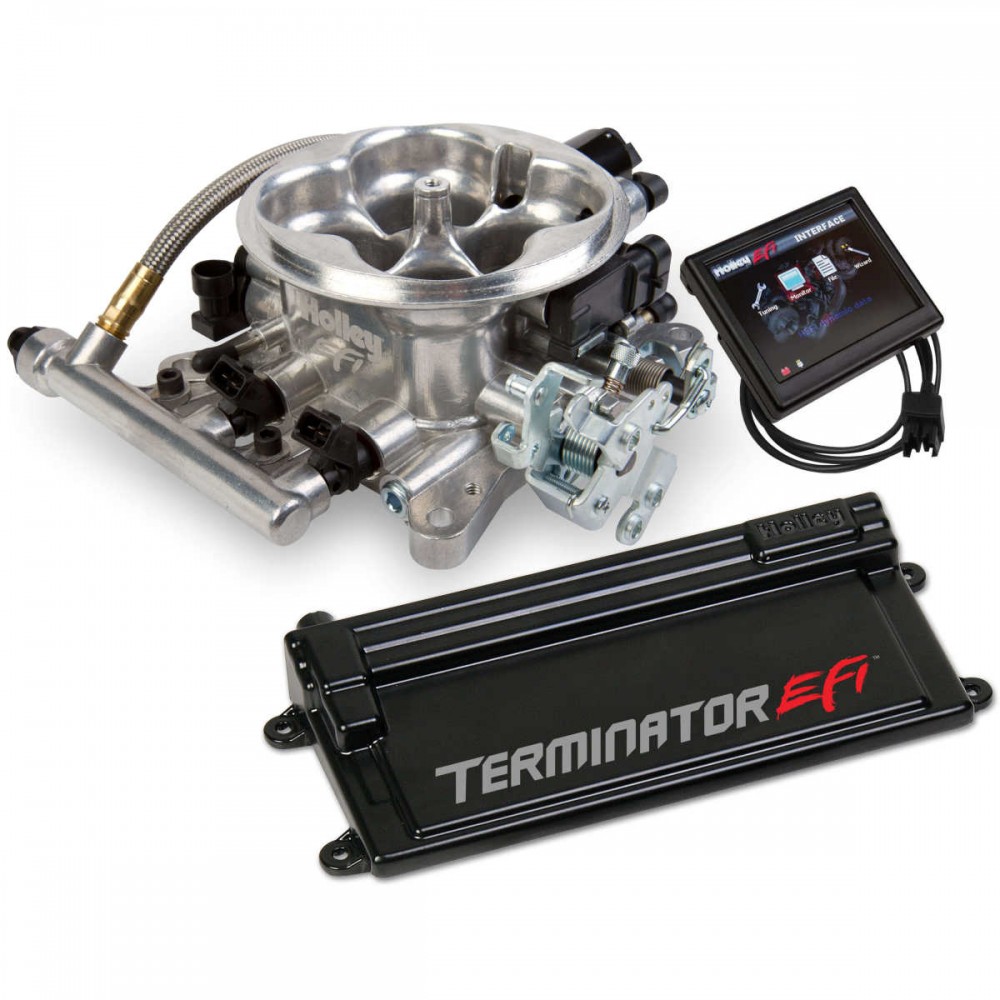

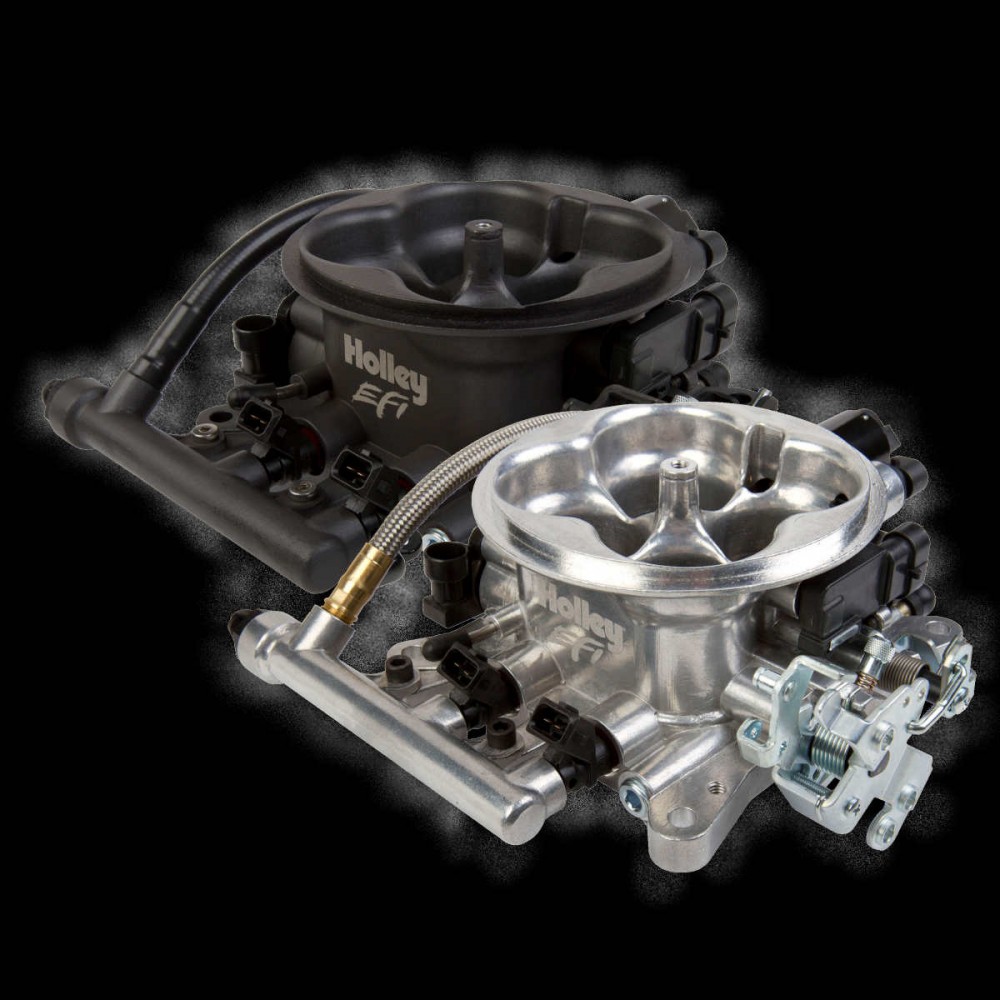

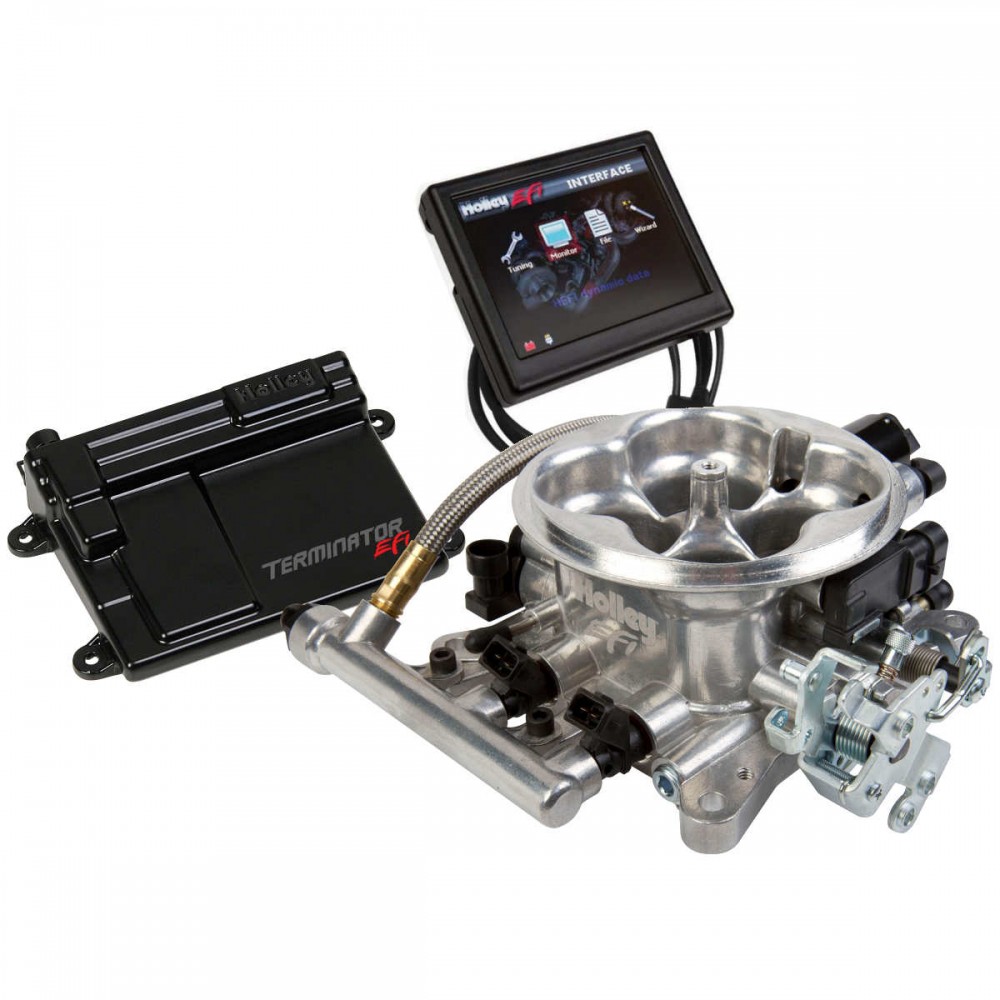

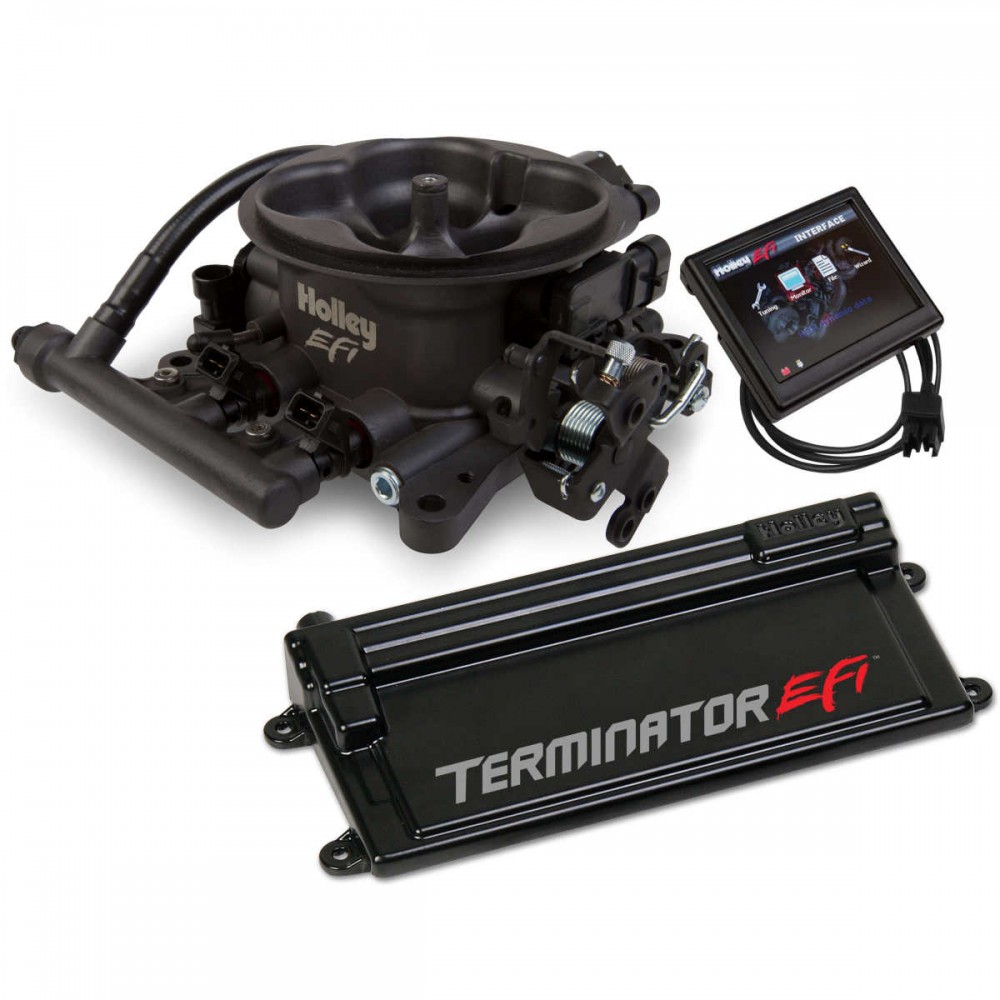

- Available in Polished (550-405 & 550-407) or Hard Core Gray (550-406, & 550-408) Throttle Body
Fits all standard square flange intake manifolds. Connections for Ford, GM TH350 and 700R4, and other transmission linkages.
While similar in scope to the Sniper EFI systems, the Terminator TBI systems have some features that set them apart from Sniper. To name a few:
- Remote-Mounted ECU typically much less sensitive to radio frequency interference (RFI)
- Capability to drive Holley EFI Fuel and Oil Pressure gauges*
- Knock Sensor Capability*
- Water Methanol Injection Capability*
- Internal Data Logging
- Fully Programmable I/O
- Customizable Sensors
- Alpha-N Load Sensing
- More Advanced Boost Control
- 8 stages of Nitrous
- Traction Control*
- Staging Assist
- Transmission Control
- Timing Control Compatibility with GM HEI or Ford TFI Ignitions*
*Requires additional hardware not included in the basic Terminator TBI system.
What's Included
The Each Terminator EFI System includes the following:
- Terminator Throttle Body with:
- 80 PPH Fuel Injectors (x4)
- 1-BAR MAP Sensor
- Throttle Position Sensor
- Idle Air Control (IAC) System
- Holley HP® or Dominator® ECU
- Bosch Wideband Sensor and Weld Bung
- Coolant Temperature Sensor
- 3.5-inch Handheld LCD Touchscreen Display
- Main Wiring and Power Harness
- I/O and Ignition Adapter Harnesses
- Brackets, Gaskets, and Fasteners
What Else Will I Need?
Required: EFI Fuel System with
- EFI Fuel Pump
- Pre- and Post-Pump Filters
- Fuel Pressure Regulator (43.5 PSI Return-Style)
- Associated Hose, Hose Ends, Clamps, Adapters, Etc.
Recommended:
Optional: Components to control ignition timing.
Available With Transmission Control
Owners of vehicles with the GM 4L60E, 4L65E, or 4L80E transmissions are really going to like this--the Terminator Univeral Throttle Body EFI System is available with transmission control for these popular transmissions. Easy setup on the handheld display using the same setup wizard that creates the configuration for EFI control. Once configured you can use the handheld to fine-tune the upshift and downshift points, WOT upshift, torque converter clutch parameters, and more. You can even tune the line pressure vs. TPS or MAP for each gear!
Fuel System Upgrade Options

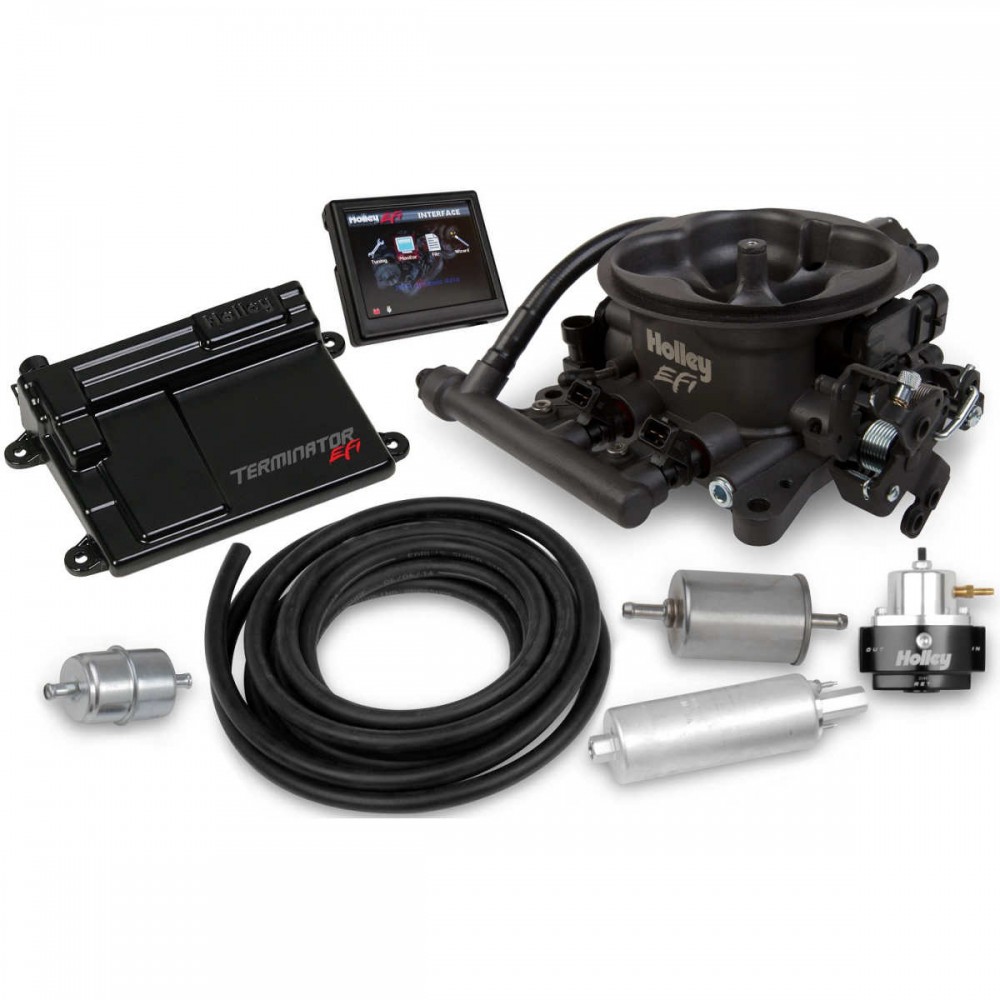

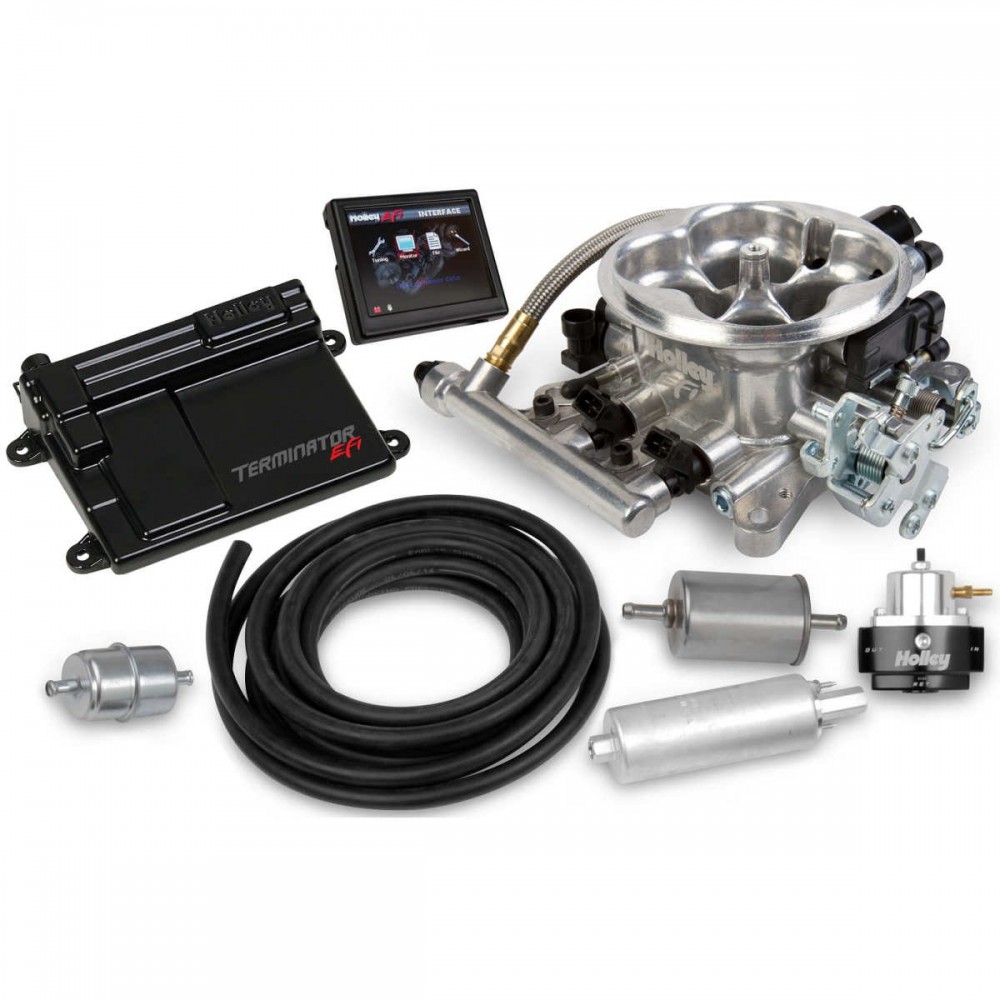

You probably recognize that you need to upgrade your fuel system if you're upgrading from a carburetor or the old GM throttle-body injection to this Terminator TBI kit. Fortunately, you have a lot of great options! We have fuel pump modules to fit a broad assortment of gas tanks, complete EFI fuel tank systems fit many popular muscle cars and trucks, and you can even choose to order your Terminator 4BBL TBI system as a Master Kit with all of the components shown in this image. If you have any questions at all, just contact us and we can help design a fuel system that is perfect for your application!
Not Sure? Review this product documentation before you buy!
Owners Manual
Holley Terminator 4-BBL Throttle Body Fuel Injection System
| ECU | |
| Boost Control | Yes (Requires Additional Hardware) |
| DIS Outputs | Eight |
| Family | Terminator |
| Fueling Strategy | Speed Density |
| Includes Power Harness | Yes |
| Injector Drivers | Four |
| Internal Datalogging | 4GB |
| Knock Control Channels | 0 |
| Nitrous Control | Yes (Requires Additional Hardware) |
| Number of Cylinders | 4, 6, or 8 (Even Fire Only) |
| User Configurable I/O | Yes |
| User-Selectable MAP Storage | Transmission Control Version Only |
| Water-Methanol Control | Yes (Requires Additional Hardware) |
| Displays And Controllers | |
| Auto Brightness | No |
| CAN Bus Capable | Yes (Specific to Holley ECUs Only) |
| Case/Bezel Finish | Black |
| Configurable | Monitor dozens of pre-configured metrics provided by the ECU, including sensors, air/fuel ratio, switched outputs, drive-by-wire data, and more. |
| Data Logging | Yes |
| Display Type | LCD |
| Functions | Setup, Monitor, Tuning |
| Gauge/Display Size | 3.5 Inch Rectangular |
| Internal Storage | Yes (SD Card) |
| Touchscreen | Yes |
| Throttle Bodies | |
| Airflow Rate (CFM) | 950 CFM |
| Barrels (BBL) | 4 |
| Gaskets Included | Yes |
| IAC Motor Included | Yes |
| Injectors Included | Yes |
| Style | Throttle Body Injection |
| Throttle Bore Diameter (ea) | 44.45mm |
| TPS Sensor Included | Yes |
| Fuel Injectors | |
| Flow Rate (Lbs / Hr) | 80 PPH |
| Harnesses | |
| Harness Type | Power Harness, Main Harness, TBI Injector Sub-Harness, I/O Harness, Ignition Adapter. Transmission Harness (Transmission Control Version Only) |
| Terminated | Yes |
| Crank Timing | |
| Sensor Harness Included | No (Ignition Adapter Only) |
| Sensors | |
| Type | 1 BAR MAP, Throttle Position (Integrated in TB); Coolant Temperature, Wideband O2 and Air Temperature Sensor; Fuel Pressure Sensor optional, not included |
| General | |
| Also Included | 40-Amp Relay. |
| Application | Universal (Requires intake manifold for square bore carburetor or adapter there-to) |
| Color | Available in Polished (550-405 & 550-407) or Hard Core Gray (550-406, & 550-408) Throttle Body |
| Emission Code | 3 |
| Unit of Sale | Kit |
