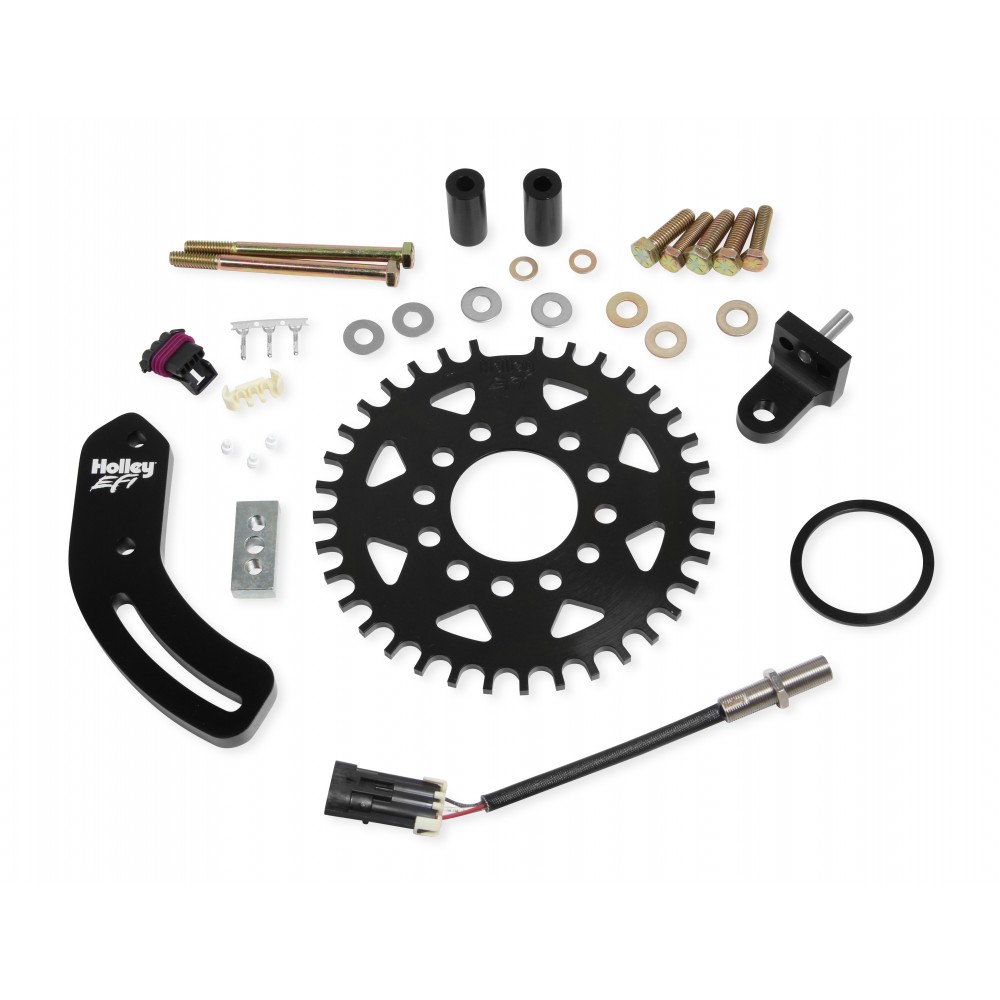

-10% Small Block Ford Crank Trigger Kit 36-1 Tooth

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD-style Crank trigger. It is designed for use on early model small block Ford applications using a standard ATI or Fluidamper-style balancer up to 7-1/4 inches in diameter.

Features and Benefits

  • 8” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
  • Crank wheel centers off of the balancer’s hub, eliminating the need for a centering ring.
  • All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley logo.
  • Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment.
  • All Grade 8 & Mil. Spec mounting hardware.

Not Sure? Review this product documentation before you buy!

Installation and Adjustment Instructions
36-1 Tooth Crank Trigger System for Small Block Ford

Crank Timing
Number of Teeth36-1
Pickup Bracket IncludedYes
Pickup IncludedYes
Sensor Harness IncludedYes
Trigger Wheel Diameter7.25 Inch
Wheel Mount StyleSmall Block Ford Direct fit (Some conditions, see description)
ApplicationSmall Block Ford
OEM ReplacementNo
Unit of SaleKit

Write a review

Note: HTML is not translated!
    Bad           Good

Small Block Ford Crank Trigger Kit 36-1 Tooth

  • Views: 10102
  • Brand: Holley EFI
  • Product Code: 556-115
  • Availability: In Stock
  • $616.00
  • $553.95
