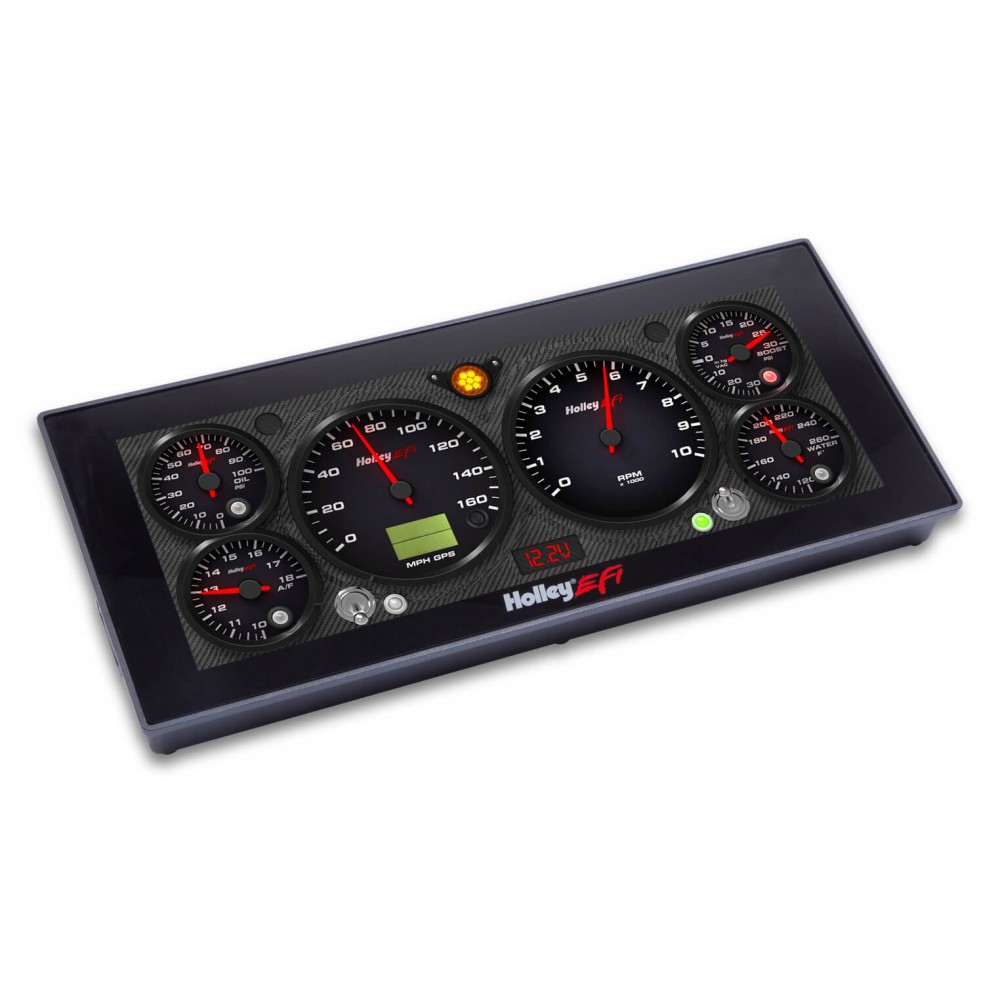

-10% Out Of Stock 12.3-inch Pro Dash

The engineers at Holley EFI set out to design the finest digital dash available on the market.  And if you are looking for the perfect pro-level dashboard for your Holley EFI System then we think you'll be pleased with what they've done here..

First off, it's pretty ginormous as digital automotive displays go.  13.44 x 5.81 outer dimensions mean that there is plenty of real estate to display the critical metrics of your vehicle in a size that won't leave you squinting.  And the full color/high contrast 12.3-inch (diagonal) 1280 x 480 resolution touchscreen display is nothing short of gorgeous eye candy inside your cockpit.  This allows you to view all of the sensors monitored by your Holley EFI ECU, or use the additional I/O capability provided by the Digital Dash itself and expand your sensing and switching capabilities even beyond what is offered by the ECU.

Check out these features!

  • Tuning mode allows you to tune your ECU in real time without connecting a laptop
  • Plug and Play Programmable Shift Light - Part Number 553-107
  • Manual and Auto brightness modes
  • Datalog runs and then play them back right on the Pro Dash
  • 13 user-configurable inputs and 4 ground-switched outputs
  • Add a USB keyboard and mouse for faster setup and editing
  • INCLUDED GPS Antenna for speedometer, odometer,  and clock function
  • Light weight (3.29 pounds) and then depth (1.25 inches) make this easy to mount
  • Pre-loaded dashboard designs or import your own custom layout
  • Create multiple switchable screens for tune, warm-up, race, driving etc.

Available in Standard or Stand-Alone Versions

Hey, obviously we're biased in favor of Holley EFI. But now there is no reason why those running a carburetor or a fuel injection system other than the Holley EFI can't take advantage of the amazing capability and visual wonder that are the Holley Pro Dashes. The stand-alone version includes the complete color-coded wiring harness that is only available as an option for the standard Pro Dash.

Watch this great video:

Not Sure? Review this product documentation before you buy!


User Manual
Holley EFI 12.3 Pro Dash


Quick Start Manual
HHolley EFI 12.3 Pro Dash

Displays And Controllers
Auto BrightnessYes
CAN Bus CapableYes (Specific to Holley ECUs Only)
Case/Bezel FinishBlack
ConfigurableDisplays as many as 238 different Pre-Programmed or User Configurable Outputs from Holley ECU. Display as needle gauges, needle/data gauges, digital gauges, bar gauges. Set up switch panels for remote switching of Holley ECU triggers.
Data LoggingYes
Display TypeLow glare, high brightness, full color (1280x480 Resolution)
FunctionsMonitor, Tuning
Gauge/Display Size13.44 Inch Overall Width with 12.3 Inch Diagonal Display
Internal StorageYes (SD Card with USB Expansion Capability))
TouchscreenYes
General

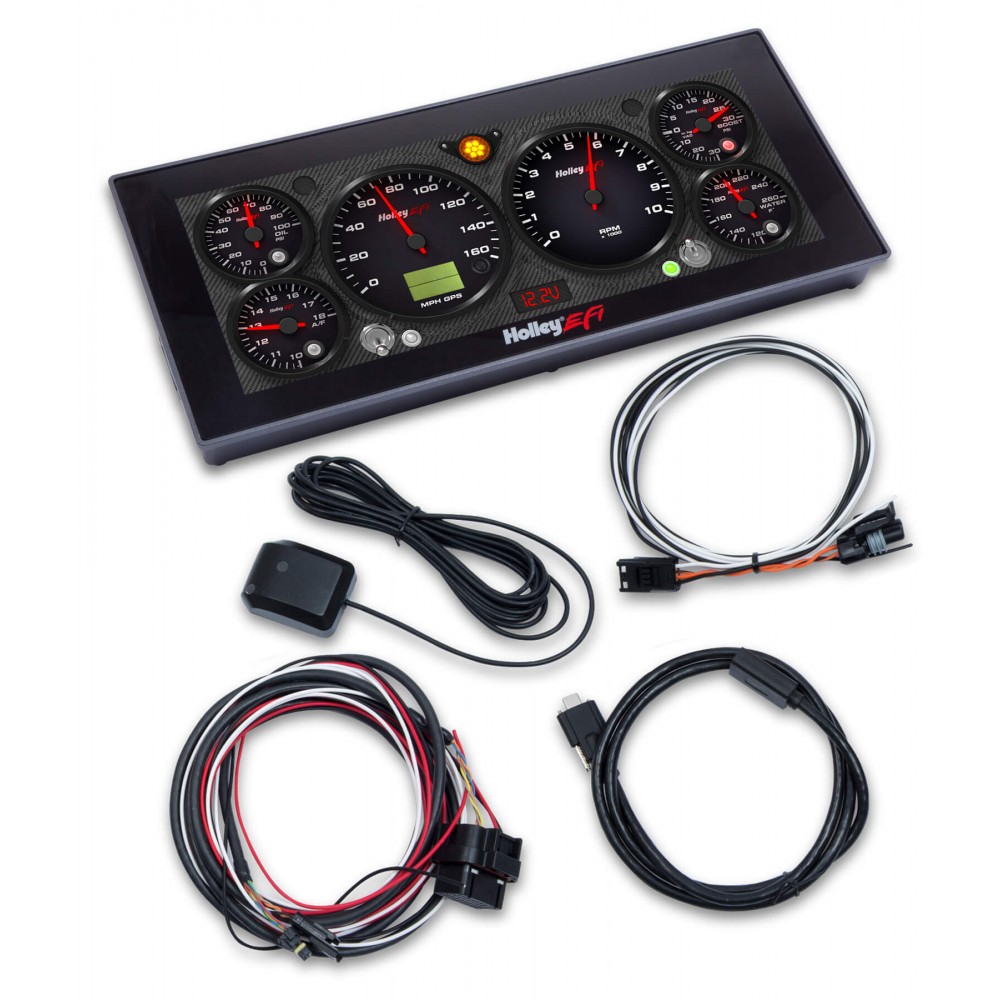

Also IncludedGPS Antenna, Can Bus Adapter Harness, Mounting Fasteners
ApplicationUniversal
Height5.81 Inches Tall
Length1.25 Inch Deep
OEM ReplacementNo
Unit of SaleEach

Write a review

Note: HTML is not translated!
    Bad           Good

12.3-inch Pro Dash

  • Views: 7566
  • Brand: Holley EFI
  • Product Code: 553-111
  • Availability: Out Of Stock
  • $2,436.00
  • $2,191.95
