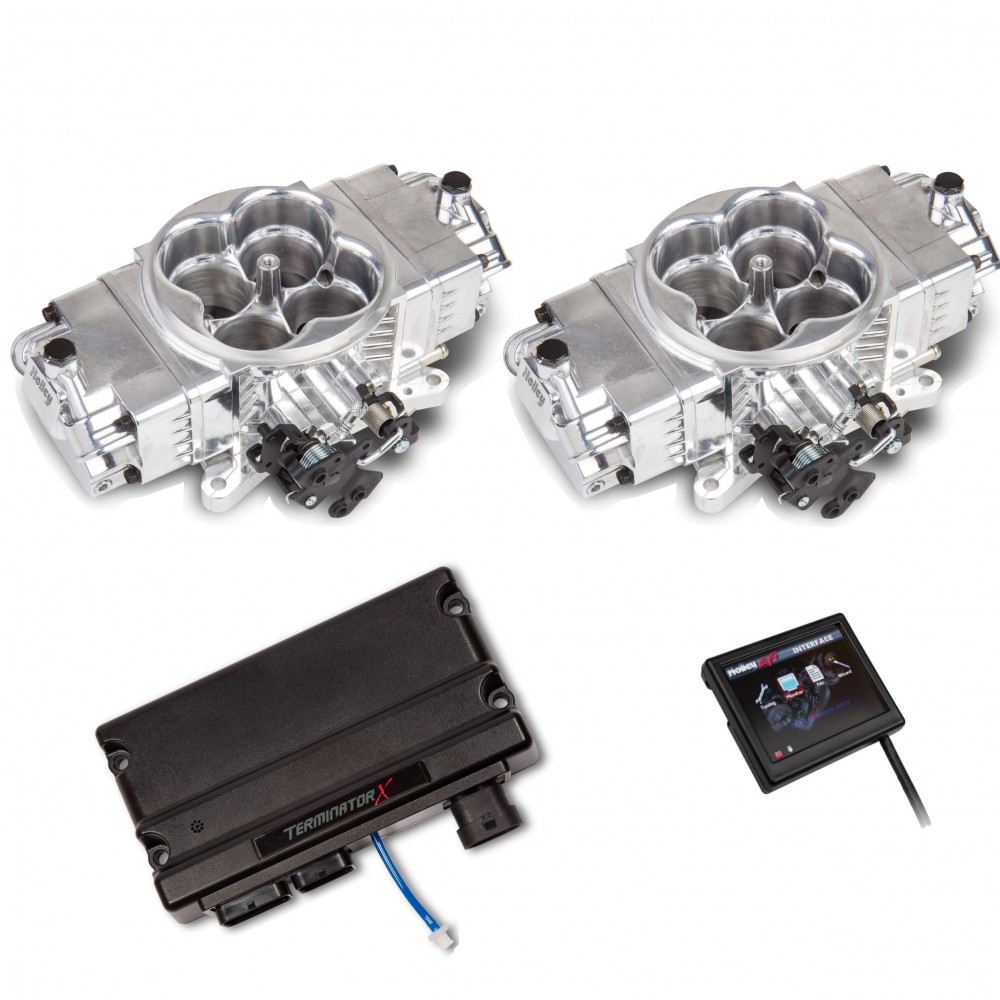

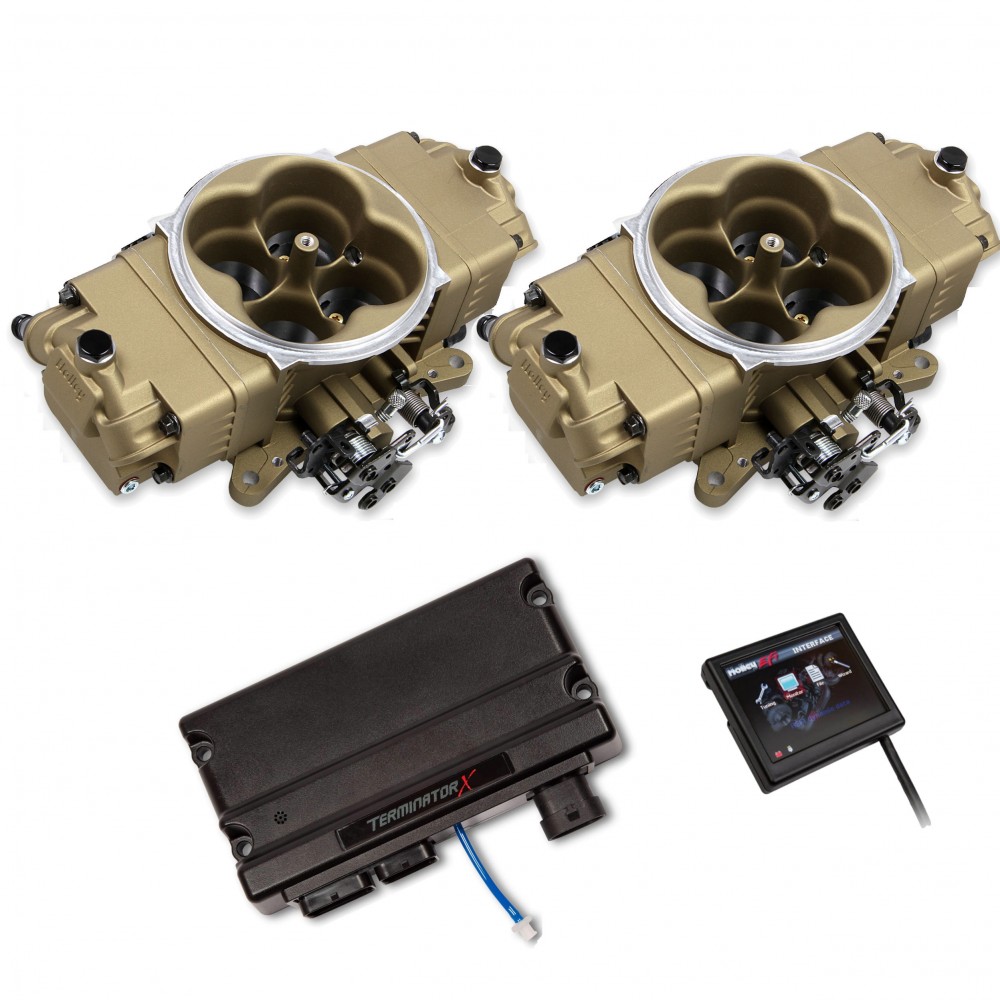

We have for many years been the only ones to offer the original Terminator EFI system in a Twin Throttle Body / 2x4 setup. And now that the Terminator X Stealth is here, we are the first to offer a Terminator X 2x4 Throttle Body Injection System in a turn-key kit. You can take your pick of any of the three different colors and get a complete turn-key 2x4-barrel throttle body EFI system, with or without electronic transmission control capability for the GM 4L60E-4L80E or the Ford 4R70W-4R75W transmissions.
These systems offer all of the features of the standard Terminator X EFI System but with twin four-barrel throttle bodies. We perform all of the setup so that the system will be ready for initial start-up when professionally installed. And, as with all of our products, the customer will receive our famed technical support from before the sale, through the installation, and assistance for the indefinite future.
Note: Professional dyno tuning is recommended for all Terminator X 2x4 systems. Kit includes Holley USB Harness. Software can be downloaded here.This kit includes:
- Terminator X or Terminator X Max ECU (based on your selection of transmission control)
- Two Terminator X Stealth throttle bodies with injectors
- Two Stealth Terminator X Fuel Line Assemblies (one per Stealth throttle body)
- Terminator Main Harness (professionally reconfigured for use with 2x4 Injector Harness)
- Terminator 2x4 Injector Harness
- Power Harness
- 3.5-inch Handheld Touchscreen Monitor
- USB Harness
- Holley Bosch O2 Sensor and Coolant Temperature Sensor
- Complete hardware kit included in standard Terminator X EFI System kit plus second base and air filter gaskets
The Terminator X 2x4 Throttle Body Injection System is built to order and, as such, special order terms apply. Please reference our Terms & Conditions for Special Orders.
What If I Already Have A Terminator EFI System?
If you've already got a Terminator EFI system and simply need
a complete kit of the additional components necessary to add and reconfigure this as a twin
throttle body setup then contact us and we can provide that.
What About A Fuel System?
Be sure to let us custom engineer a fuel system solution that will be perfect for your project's specific requirements.
| ECU | |
| Boost Control | Yes |
| DIS Outputs | Available |
| Family | Terminator X |
| Fueling Strategy | Speed Density, Alpha-N, or Combination |
| Includes Power Harness | Yes |
| Injector Drivers | Eight |
| Internal Datalogging | Via Handheld / SD Card Only |
| Nitrous Control | Yes |
| Number of Cylinders | 4, 6, or 8 (Even Fire Only) |
| User Configurable I/O | Yes |
| User-Selectable MAP Storage | No |
| Water-Methanol Control | Yes |
| Displays And Controllers | |
| Auto Brightness | No |
| CAN Bus Capable | Yes (Specific to Holley ECUs Only) |
| Case/Bezel Finish | Black |
| Configurable | Monitor dozens of pre-configured metrics provided by the ECU, including sensors, air/fuel ratio, switched outputs, drive-by-wire data, and more. |
| Data Logging | via Handheld Controller Only |
| Display Type | LCD |
| Functions | Monitor, Tuning |
| Gauge/Display Size | 3.5 Inch Rectangular |
| Internal Storage | Yes (SD Card) |
| Touchscreen | Yes |
| Throttle Bodies | |
| Barrels (BBL) | 2 x 4 |
| Gaskets Included | Yes |
| IAC Motor Included | Yes |
| Injectors Included | Yes |
| Style | Throttle Body Injection |
| Throttle Bore Diameter (ea) | 44.45mm |
| TPS Sensor Included | Yes |
| Fuel Injectors | |
| Flow Rate (Lbs / Hr) | 100 PPH at 60 PSI |
| Harnesses | |
| Harness Type | Power Harness, Main Harness, TBI Injector Sub-Harness, I/O Harness, Ignition Adapter, 2x4 Throttle Body Injector Harness |
| Terminated | Yes |
| Crank Timing | |
| Sensor Harness Included | No (Ignition Adapter Only) |
| Sensors | |
| Type | Internal 1-Bar MAP, Throttle Position (Integrated in TB); Coolant Temperature, Wideband O2 and Air Temperature Sensor; Fuel Pressure Sensor optional, not included |
| General | |
| Also Included | 40-Amp Relay. |
| Application | Universal (Requires intake manifold for two square bore throttle bodies) |
| Color | Your choice of Silver or Classic Gold |
| Unit of Sale | Kit |
