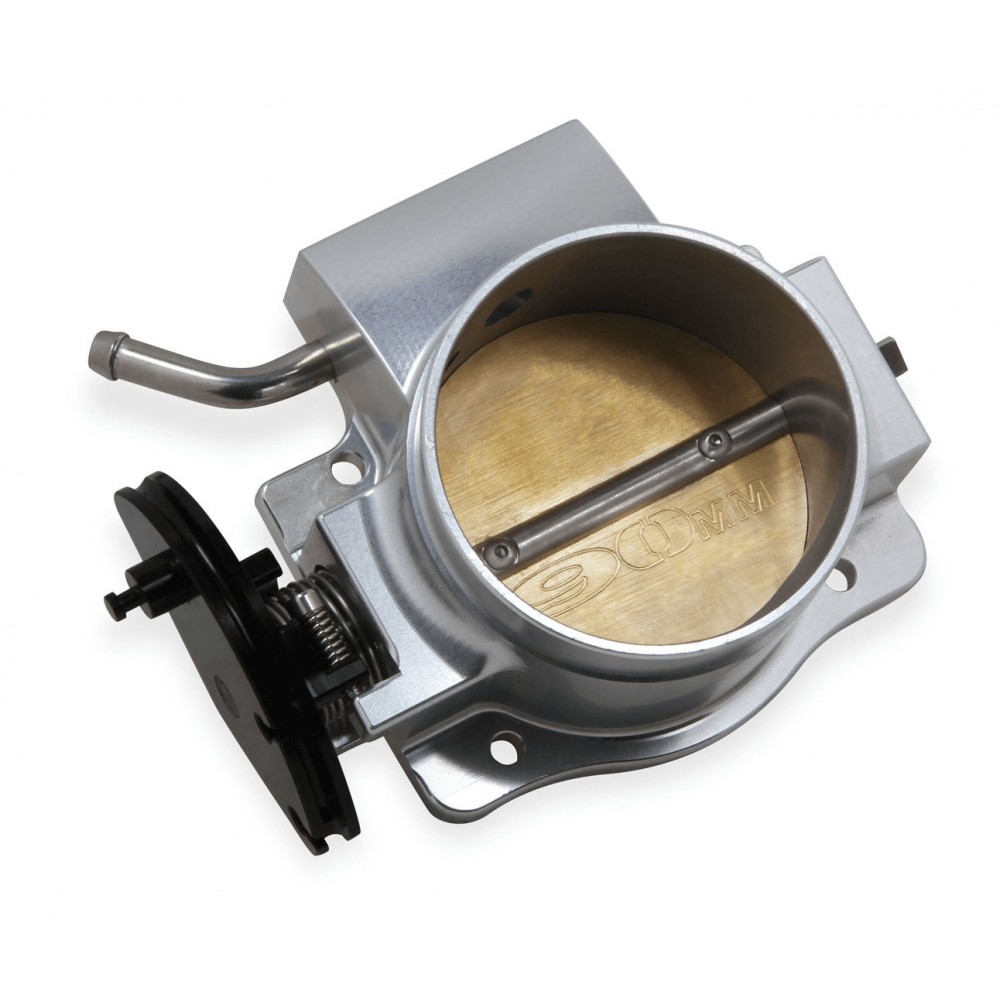

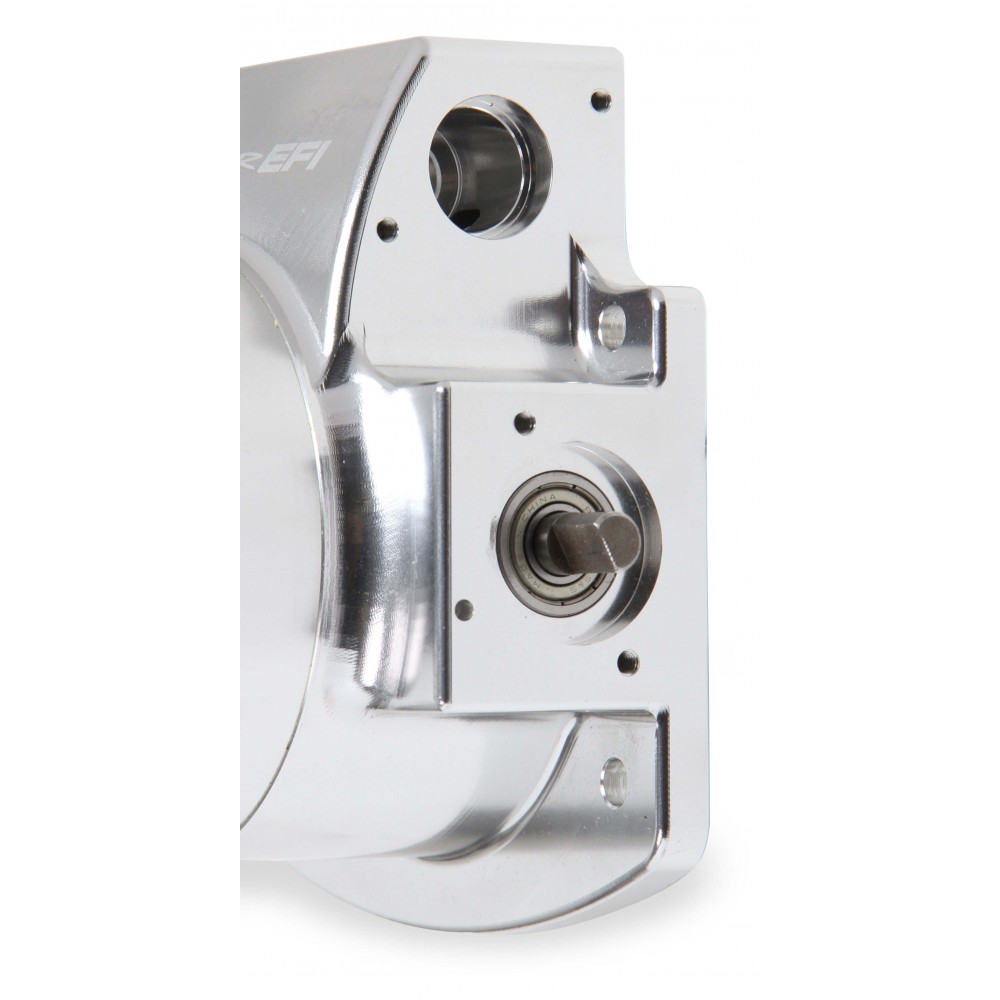

Sniper EFI’s 90mm billet aluminum throttle bodies are designed as a direct fit for Sniper intake manifolds on GM LS1/LS2/LS3/LS6/LS7 engines. This is one of the single most cost-effective aftermarket performance LS throttle bodies available on the market today. This version is anidized in a bright silver finish, and is also available in black.
This throttle body features a large 90mm bore for greater airflow in support of more engine power production. The action is progressive, which ensures great low-rpm driveability. A double return spring provides solid and secure throttle control feel.
Consider these amazing properties:
- Cable operated throttle body
- High quality billet aluminum construction
- Laser engraved Sniper EFI logo
- Adjustable throttle stop
- 4-bolt style mounting pattern (bolts included)
Note! This throttle body does not include IAC or TPS. For best results, use the following:
*If you happen to have one of the older versions of this throttle body (produced before 2018) then use the Holley 543-105 IAC Motor.Throttle Bodies | |
Barrels (BBL) | 1 |
Style | Multi-Point Fuel Injection |
Throttle Bore Diameter (ea) | 90mm |
TPS Sensor Included | Yes |
General | |
Application | Stock LS2, LS3, LS7; Holley LS Mid-Rise; Holley 95mm Hi-Ram; Fast LSX; Edelbrock Pro-Flo XT and other LS intakes with 90-95mm 4-bolt flanges |
Color | Silver Anodized Aluminum |
Emission Code | 3 - Racing Vehicles Only |
Material | Billet Aluminum |
OEM Replacement | Yes |
Unit of Sale | Each |
