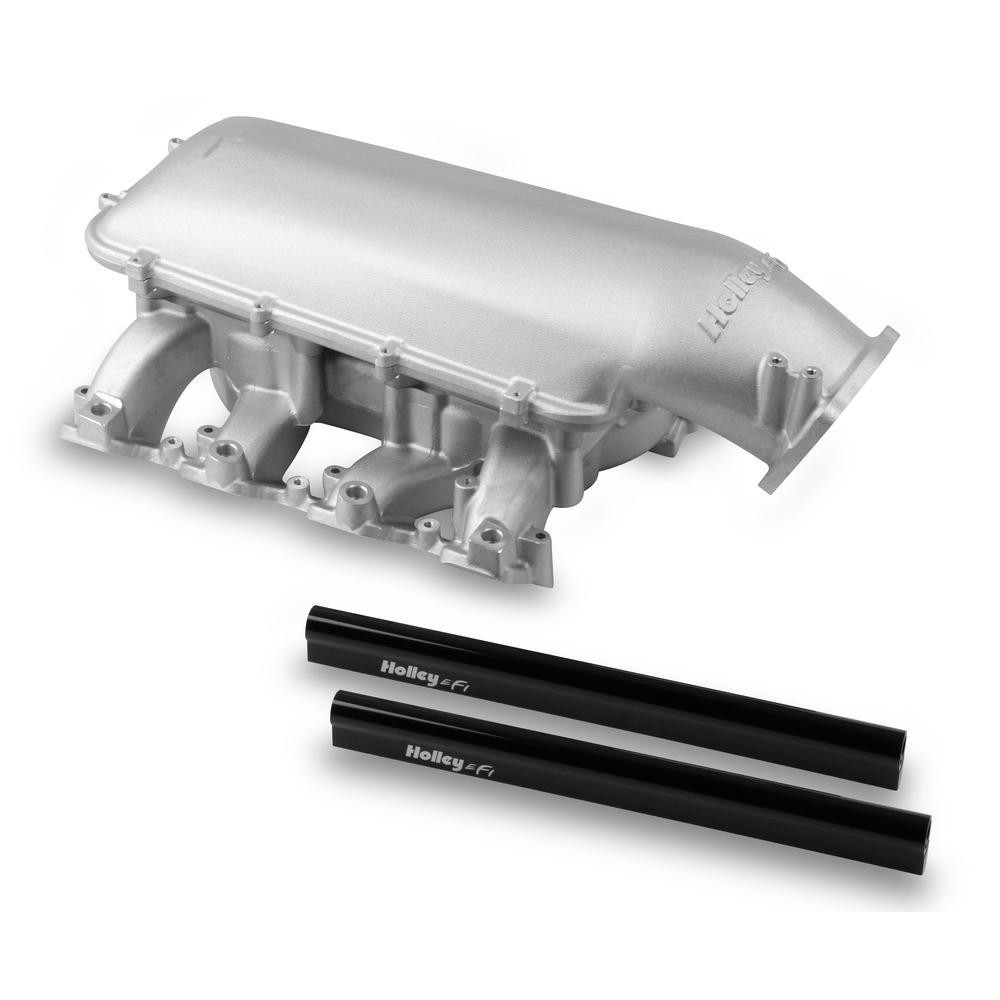

The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 92MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44”, the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500-6,500 RPM and limited hood clearance. It’s perfect for a blow-thru or turbocharged application.
Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum adapter (PN 300-231) will accept all of the popular Holley Hi-Ram plenum tops as a foundation for custom induction systems.
Holley LS main harnesses have a map sensor connecter designed for use with an LS1/2 style map sensor. The 558-416 is an adapter harness that can be used to adapt any LS harness that uses a LS1/2 MAP sensor connection to a LS3 MAP, which is recommended for this manifold.
Not Sure? Review this product documentation before you buy!
Instruction Manual
Holley LS Modular Mid-Rise Intake Manifold Kit
| Intake Manifolds | |
| Manifold Type | Mid-Rise Intake |
| Throttle Body Flange | 92mm Throttle Body Flange (Throttle Body Not Included) |
| Complete Manifold | Yes |
| RPM Range | 1500-6500 |
| Fuel Rail Included | Yes |
| Front Height | 10.44 Inches |
| Rear Height | 10.44 Inches |
| General | |
| Application | GM LS3/L92 |
| Color | Satin Aluminum Intake with Black Anodized Fuel Rails |
| Emission Code | 3 |
| Material | Cast Aluminum |
| OEM Replacement | No |
| Unit of Sale | Each |
