-15% Auxiliary Harness, J3 Connector Inputs/Outputs

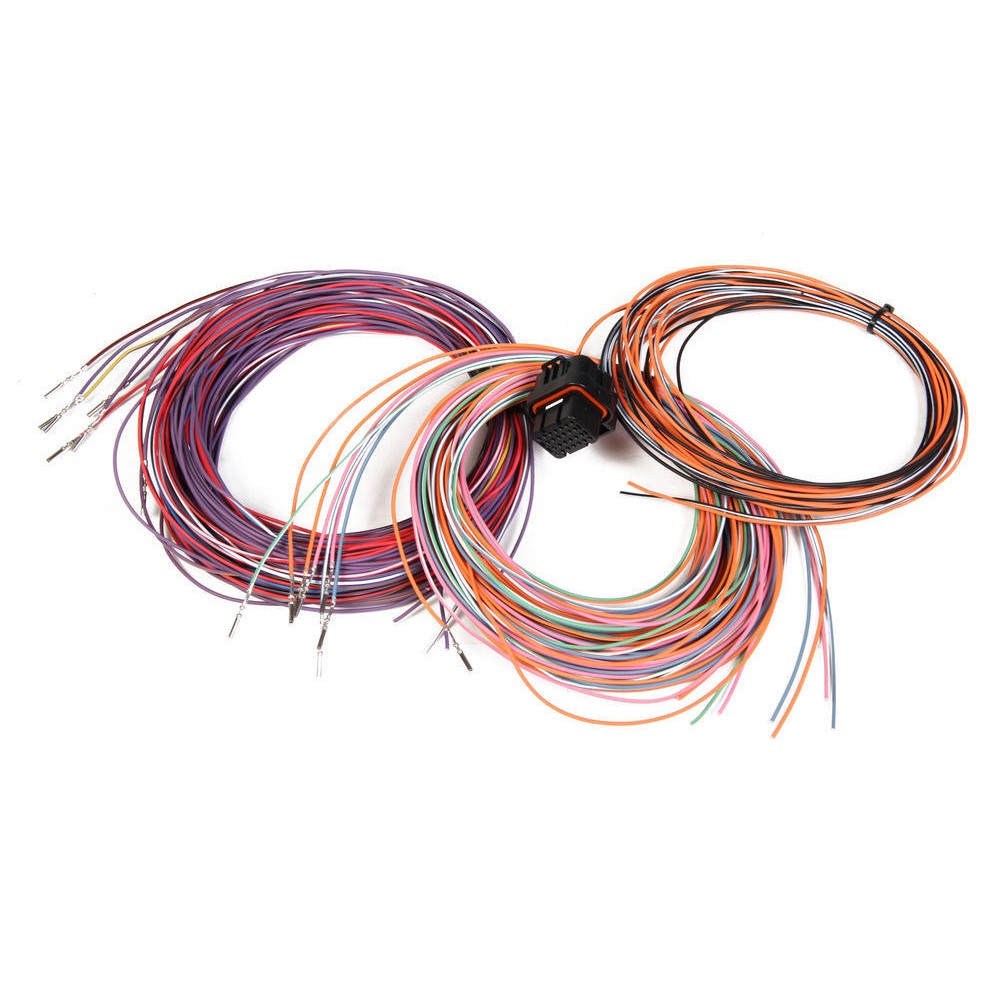

The Holley Dominator ECU is unique from all of the other Holley ECUs in that it provides a plethora of inputs and outputs that allow you to control virtually any electronic operation on any vehicle. This harness provides plug-and-play access to the Dominator J3 connector, and provides a sufficient length of unterminated wire as well as a connector for a second Wideband O2 sensor.

Here are the signals available on J3:

PinFunction
A1Input #6 (52THG)
A2Input #10 (52THG)
A3Input #14 (5G)
A4Input #18 (FS)
A5Input #21 (5HG)
A6Input #25 (5HG)
A7WB2 COMPR2
A8WB2 Shield
A9WB2 HTR -
A10Input #5 (52THG)
A11Input #9 (52HG)
A12Input #13 (5G)
A13Input #17 (FS)
A14Input #20 (5HG)
A15Input #24 (5HG)
A16WB2 COMPR1
A17WB2 VS-/IP+
A18Sensor Ground
A19Input #8 (52THG)
A20Input #12 (5G)
A21Input #16 (FS)
A22Speed Inputs Ground
A23Input #23 (5HG)
A24Input #27 (5HG)
A25WB2 VS+
A26Sensor +5v
A27Input #7 (52THG)
A28Input #11 (52THG)
A29Input #15 (5G)
A30Input #19 (FS)
A31Input #22 (5HG)
A32Input #32 (5HG)
A33WB2 IP+
A34WB2 HTR +

Not Sure? Review this product documentation before you buy!


Wiring Diagrams for
Holley ECU's and Harnesses

Harnesses
Harness TypeAuxiliary Harness (Customizable Inputs and Outputs)
TerminatedYes
General
ApplicationUniversal
Unit of SaleEach

Write a review

Note: HTML is not translated!
    Bad           Good

Auxiliary Harness, J3 Connector Inputs/Outputs

  • Views: 7233
  • Brand: Holley
  • Product Code: 558-403
  • Availability: In Stock
  • $138.00
  • $117.95
