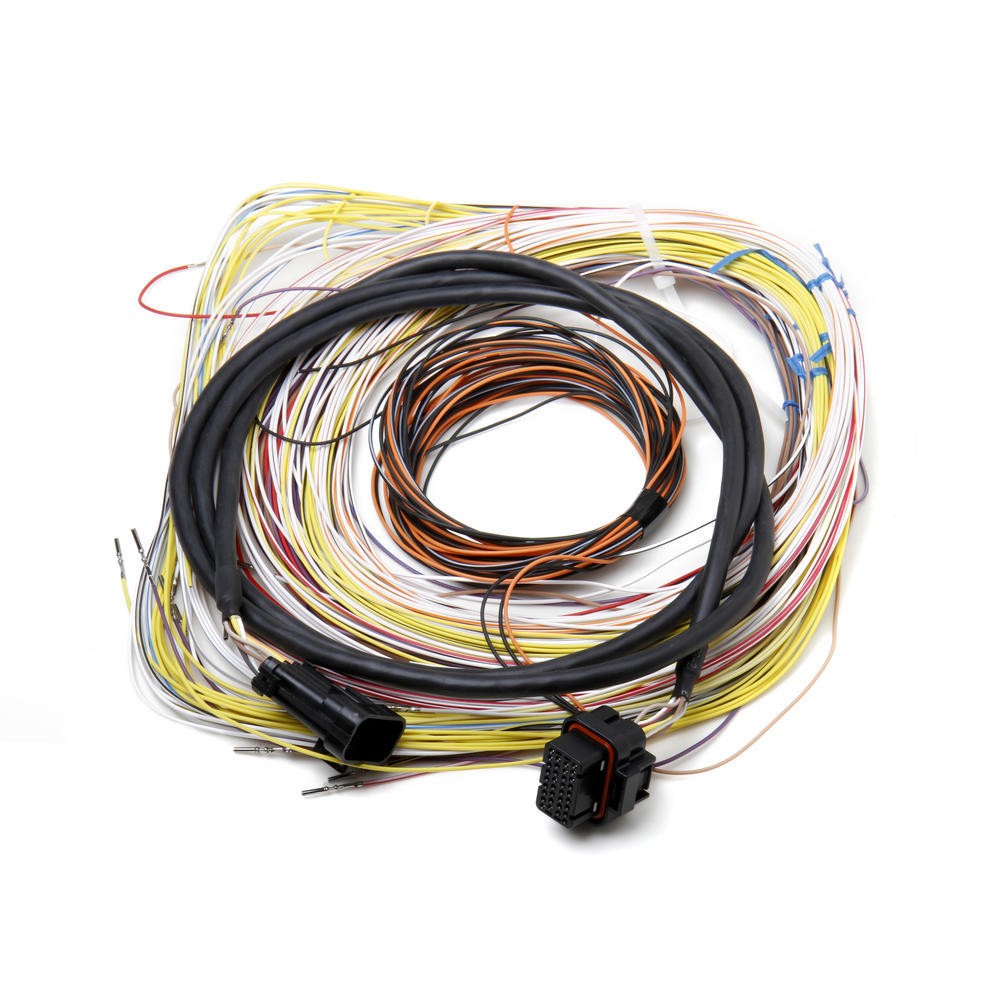

-15% Auxiliary Harness, J2A Connector Inputs/Outputs

The Holley Dominator ECU is unique from all of the other Holley ECUs in that it provides a plethora of inputs and outputs that allow you to control virtually any electronic operation on any vehicle. This harness provides plug-and-play access to the Dominator J2A connector, and provides a sufficient length of unterminated wire as well as a connector for a second Wideband O2 sensor.

Here are the signals available on Connector J2A:

PinFunction
A1Coil - Input
A2Fuel Pump Out (+12v) (10A Max)
A3Input #2 (F52THG)
A4Input #4 (F5G)
A5TPS Input
A6Points Trigger Output
A7WB1 COMPR2
A8WB1 Shield
A9WB HTR -
A10Switched +12v Input
A11Manifold Air Temp Input
A12Input #1 (F52THG)
A13Input #3 (F5G)
A14Cam/Crank Ground
A15Gauge Digital Output
A16WB1 COMPR1
A17WB1 VS-/IP+
A18Sensor Ground
A19Engine Coolant Temp Input
A20Oil Pressure Input
A21Knock #2 Input
A22Cam Sync Input / Ignition Bypass Output
A23Map Sensor Input
A24CAN Lo
A25WB1 VS+
A26Sensor +5v
A27NOT USED
A28EST/Spout Output
A29Knock #1 Input
A30Crank Speed Input
A31Fuel Pressure Input
A32CAN Hi
A33WB1 IP+
A34WB HTR +

Not Sure? Review this product documentation before you buy!


Wiring Diagrams for
Holley ECU's and Harnesses

Harnesses
Harness TypeAuxiliary Harness (Customizable Inputs and Outputs)
TerminatedYes
General
ApplicationUniversal
Unit of SaleEach

Write a review

Note: HTML is not translated!
    Bad           Good

Auxiliary Harness, J2A Connector Inputs/Outputs

  • Views: 8139
  • Brand: Holley
  • Product Code: 558-401
  • Availability: In Stock
  • $207.00
  • $176.95
