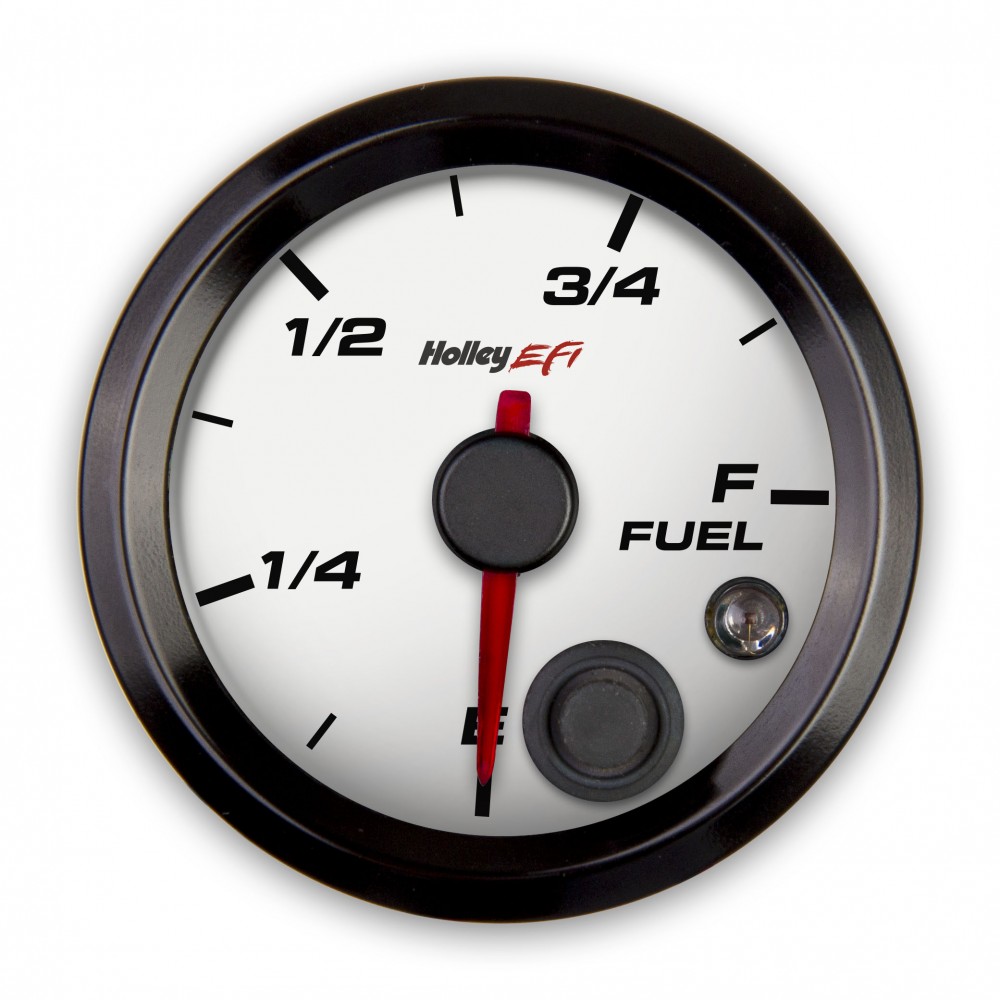

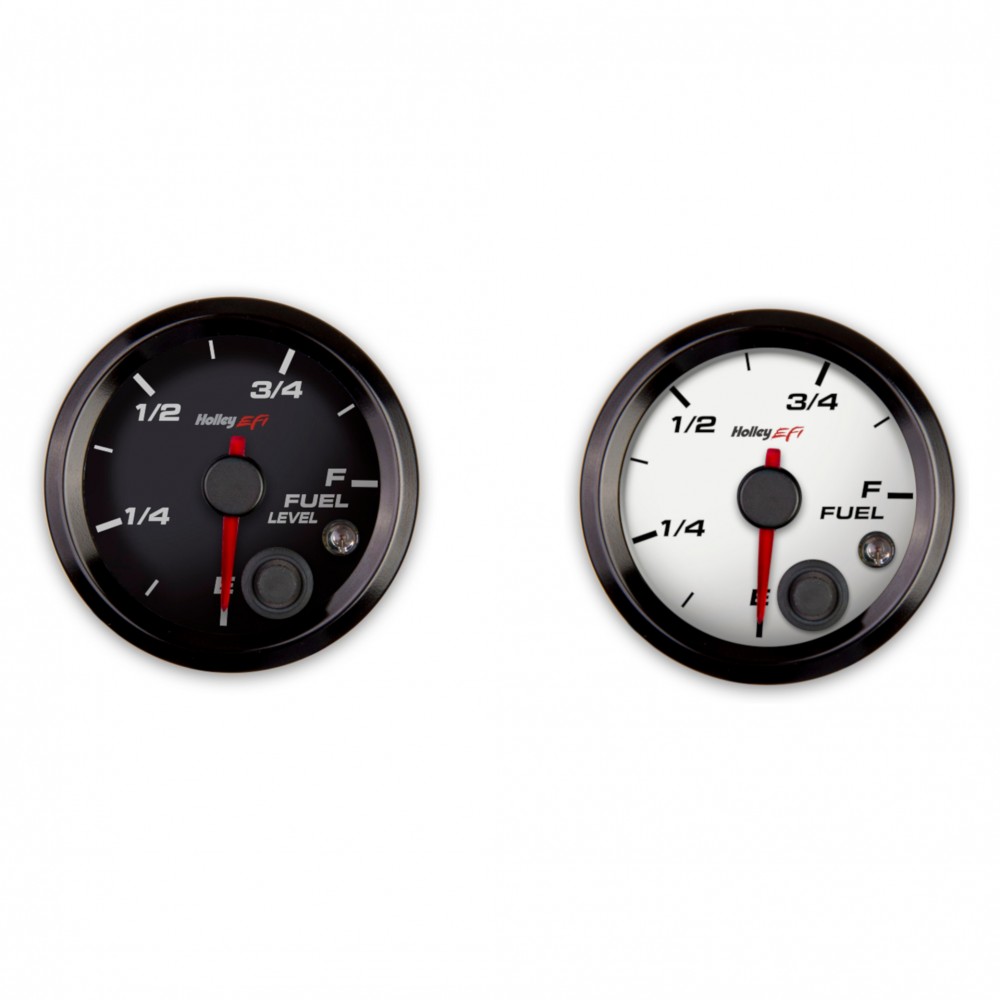

-10% 2-1/16 Inch Fuel Level Gauge, Analog Display

While the other Analog Display gauges in the Holley Gauge line get their data from the ECU, Holley recognized that you're going to need a really nice matching fuel level gauge--and that data isn't in the ECU. So they went to the drawing board to create this great programmable fuel level gauge that works with almost any fuel level sender on the market! Check out these features:

  • Wires directly to sending unit, programmable for factory and aftermarket sending units with a range anywhere within 0-300ohms
  • Includes 12' shielded cable to connect directly to sending unit
  • 270° sweep pointer from 6 to 3 o’clock makes gauges easy to read at a glance
  • Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
  • Adjustable LED warning light allows user to set low trigger points
  • LED warning light brightness can be configured for both day and night
  • Spin lock ring threads to back of gauge case for simple and secure gauge mounting
  • CNC machined billet aluminum bezels with anodized finish – Bezels are threaded for easy replacement
  • Multiple bezel options available separately – User can customize the gauges to their preference

Not Sure? Review this product documentation before you buy!

Installation Instructions
Holley Fuel Level Gauge

Displays And Controllers
Auto BrightnessNo
CAN Bus CapableYes (Specific to Holley ECUs Only)
Case/Bezel FinishBlack (Standard. Silver Bezel Available Separately)
ConfigurableProgrammable to work with most fuel level senders
Data LoggingNo
Display TypeAnalog (Red Pointer, Black Face, White Numerals and Red Warning LED)
Gauge/Display Size2 1/16 Inch / 52mm Round
Internal StorageNo
Also IncludedNight Dimming Feature, 3-Foot Power Harness, 12-foot Shielded Sender Cable
OEM ReplacementNo
Unit of SaleEach
