Do you already have one of Holley's Terminator EFI Systems and want to add a second throttle body for a twin 4-BBL setup? We've made it easy!
You can take your pick of any of the five different color/style combinations (including the standard silver and gray throttle bodies) and couple this with your existing Terminator kit to have everything you need. Bolt this onto your 2x4 intake manifold, add the linkage and air cleaners, plumb the fuel and configure according to included instructions. And, as with all of our kits and systems, you get personalized technical support from our in-house Holley-trained Tier III technician.

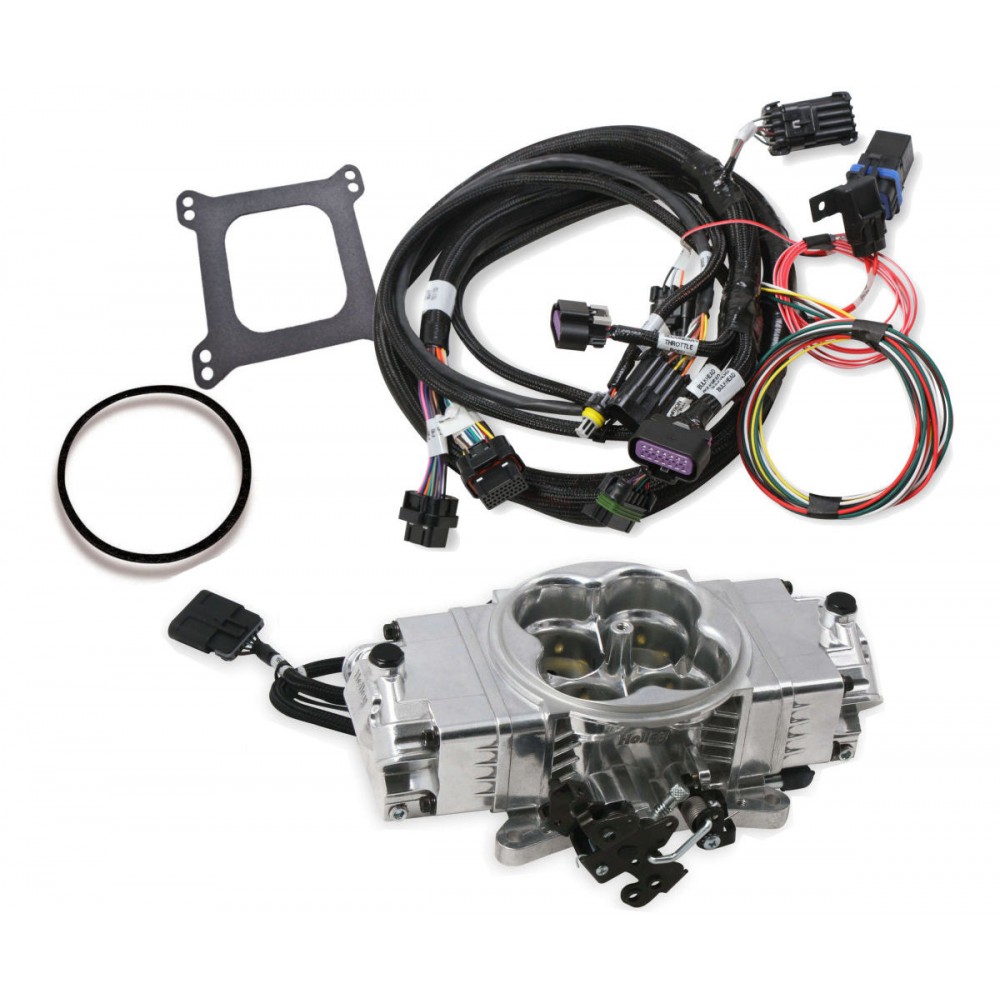

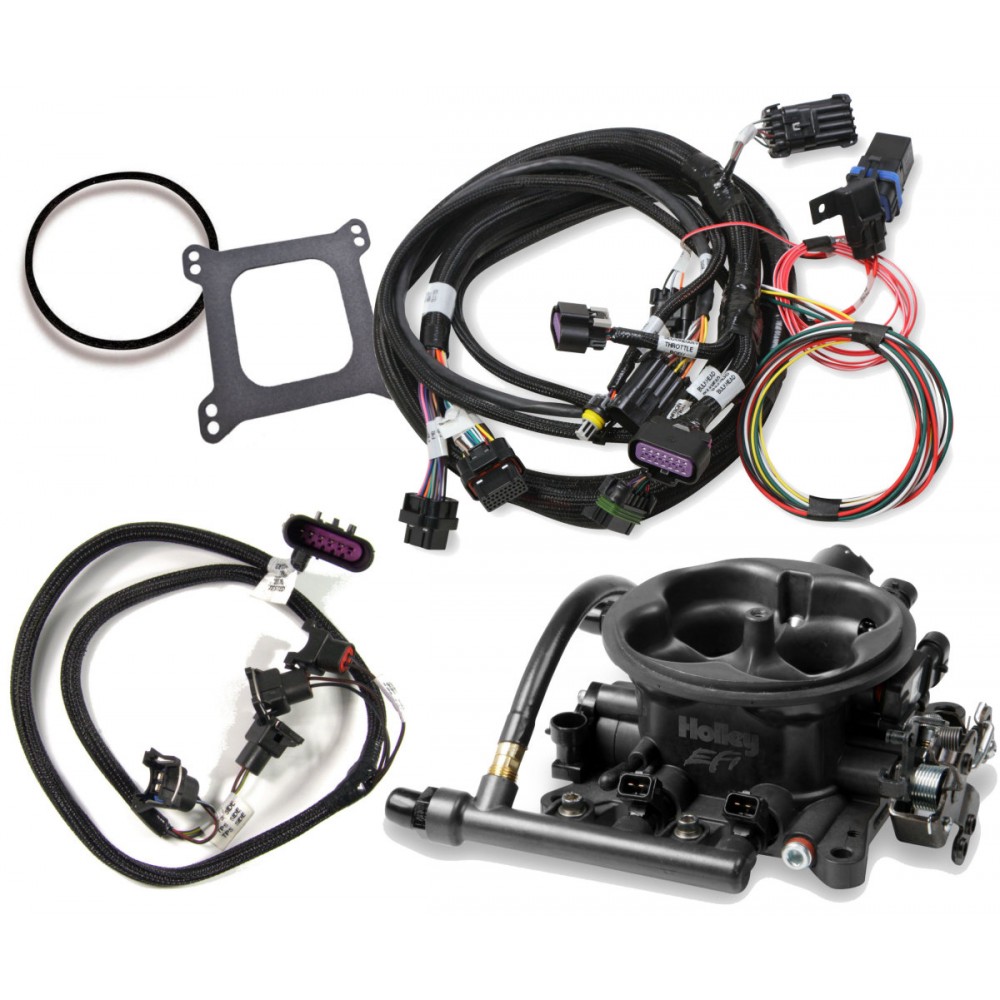

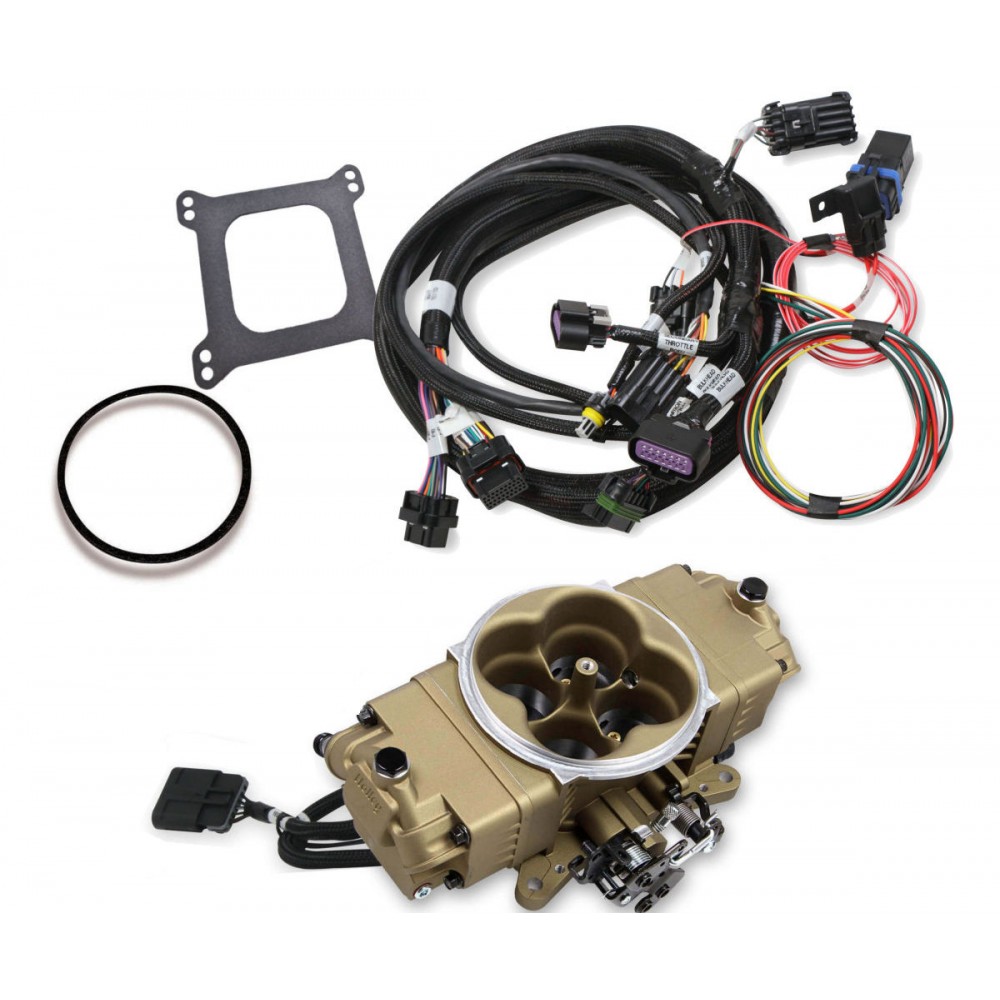

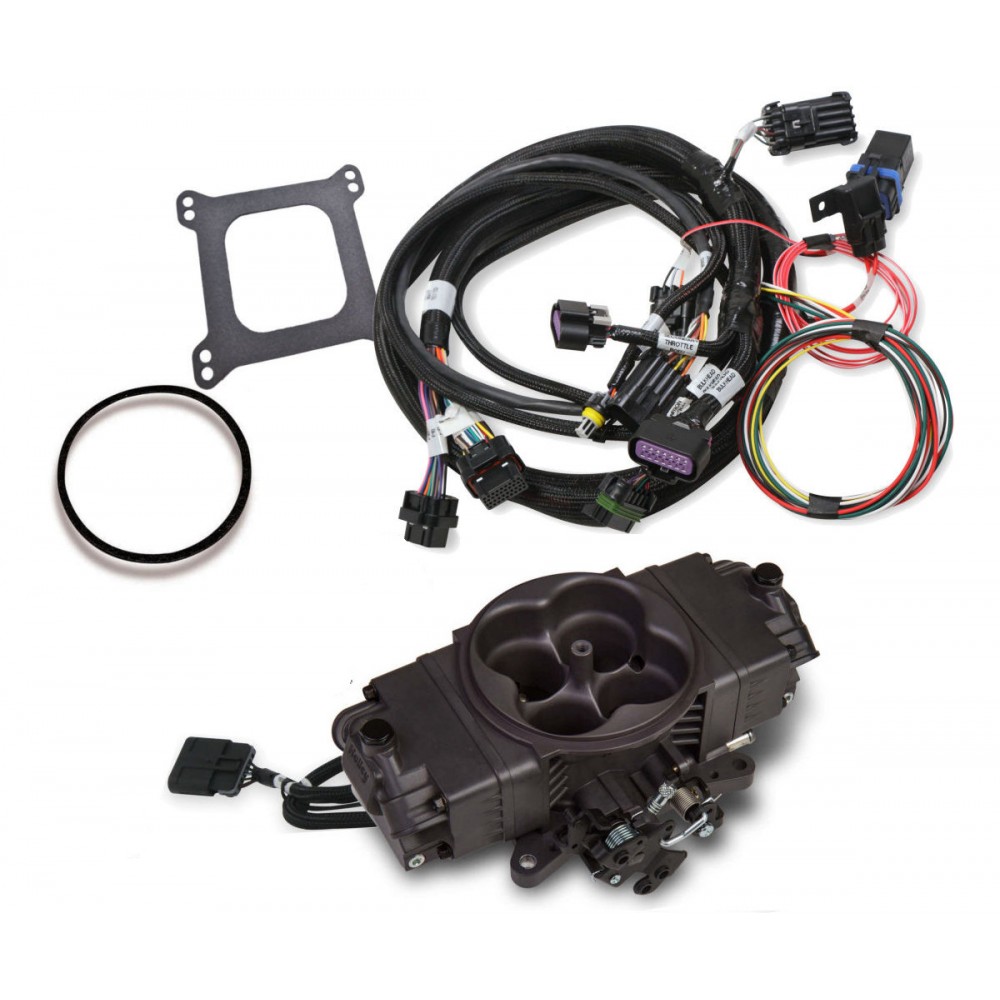

This kit includes:
- Slave Terminator throttle body with injectors
- New Terminator 2x4 Main Harness
- Terminator Throttle Body 2x4 Injector Harness
- Base and air filter gaskets
What about the Bowl Connector Hose?
If your original EFI system was Terminator Stealth then that throttle body came with a bowl connector hose. Nothing fancy but very adequate. And if you'd like a matching hose then Holley offers that. And the cost is twice of what a nicer hose costs. Our recommendation? Pick from one of these options. The braided hose, in particular, is a very nice upgrade and you can buy two new hoses for just a bit more than what Holley wants to match your existing hose.
- Crossover Hose for Stealth Throttle Bodies (Unbraided)
- Crossover Hose for Stealth Throttle Body (Braided)
Can I use this to add a second throttle body to my Terminator X Stealth System?
Unfortunately, no. Besides looking just slightly different this throttle body has the annular rings for the fuel injection located under the throttle plates. The Terminator X Stealth throttle body places those rings above the plate. In one case you need vacuum-referenced fuel pressure regulation, in the other you don't want that. It's not going to work right. We're hopeful that Holley is going to release either a service or full 2x4 slave throttle body soon for the Terminator X Stealth so we can start building Twin Terminator X Stealth Systems but until then you'll need to hold on (or keep reading...)
Or Maybe You're Starting From Scratch
Did you arrive here looking to build a complete dual-quad throttle body EFI system from the ground up? In that case, save time, money, and frustration by purchasing our complete Twin Terminator Dual Quad Throttle Body Kit! We've eliminated all of the guesswork. Your system will arrive completely configured and ready to install and start.
Note: Holley Terminator EFI Systems with twin throttle bodies benefit from dyno tuning. Be sure to purchase the optional USB cable if you don't have one already. You can download the laptop tuning software here. Also, clearance and linkage are always issues of concern on a twin throttle body setup. We're happy to provide whatever measurements you need in advance of your purchase so you can ensure fitment. In virtually all cases Stealth throttle bodies must be mounted with the fuel bowls to the sides of the engine.
Watch this video from one of our Customer's cars!
ECU | |
Boost Control | Yes |
DIS Outputs | None |
Family | Terminator |
Fueling Strategy | Speed Density, Alpha-N, or Combination |
Includes Power Harness | Yes |
Injector Drivers | Eight |
Internal Datalogging | 4GB |
Knock Control Channels | 0 |
Nitrous Control | Yes |
Number of Cylinders | 4, 6, or 8 (Even Fire Only) |
User Configurable I/O | Yes |
User-Selectable MAP Storage | No |
Water-Methanol Control | Yes |
Displays And Controllers | |
Auto Brightness | No |
CAN Bus Capable | Yes (Specific to Holley ECUs Only) |
Case/Bezel Finish | Black |
Configurable | Monitor dozens of pre-configured metrics provided by the ECU, including sensors, air/fuel ratio, switched outputs, drive-by-wire data, and more. |
Data Logging | Yes |
Display Type | LCD |
Functions | Monitor, Tuning |
Gauge/Display Size | 3.5 Inch Rectangular |
Internal Storage | Yes (SD Card) |
Touchscreen | Yes |
Throttle Bodies | |
Airflow Rate (CFM) | 950 CFM |
Barrels (BBL) | 2 x 4 |
Gaskets Included | Yes |
IAC Motor Included | Yes |
Injectors Included | Yes |
Style | Throttle Body Injection |
Throttle Bore Diameter (ea) | 44.45mm |
TPS Sensor Included | Yes |
Fuel Injectors | |
Flow Rate (Lbs / Hr) | 80 PPH |
Harnesses | |
Harness Type | Power Harness, Main Harness, TBI Injector Sub-Harness, I/O Harness, Ignition Adapter, 2x4 Throttle Body Injector Harness |
Terminated | Yes |
Crank Timing | |
Sensor Harness Included | No (Ignition Adapter Only) |
Sensors | |
Type | 1 BAR MAP, Throttle Position (Integrated in TB); Coolant Temperature, Wideband O2 and Air Temperature Sensor; Fuel Pressure Sensor optional, not included |
General | |
Also Included | 40-Amp Relay. |
Application | Universal (Requires intake manifold for two square bore throttle bodies) |
Color | Your choice of Polished Aluminum, Hard Core Gray or Classic Gold |
Emission Code | 3 |
Unit of Sale | Kit |
