-10% Out Of Stock Fuel System Kit, 67 GPH Walbro Pump, Super-Stock Hose and Hose Ends

Holley fuel kits are the perfect addition to your Terminator or Holley kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl’s plumbing to provide a fuel system tailored to the needs of your Terminator EFI System

Kits do not include hose from the fuel tank to the pre-filter or the return line from the fuel pressure regulator to the tank.

This kit is recommended for pump or race gas use only. The included fuel pump is not compatible with E-85.

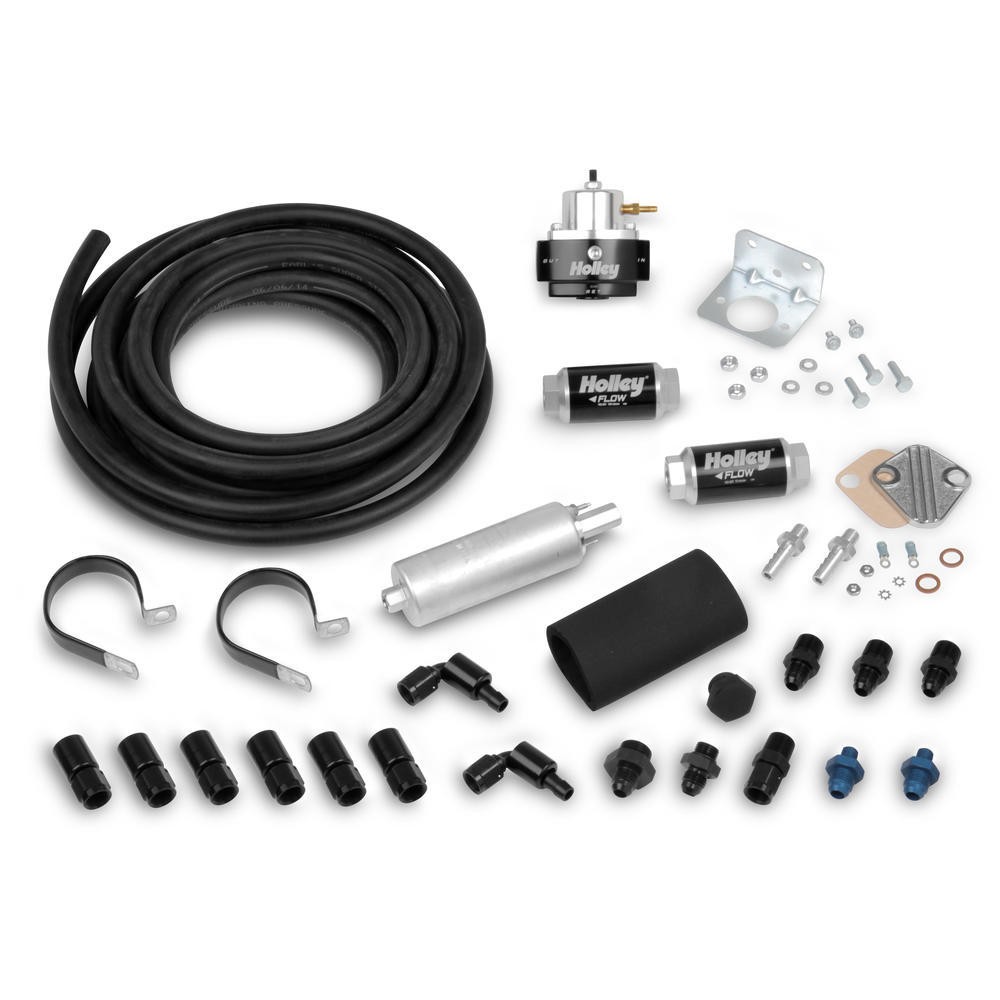

This kit includes:

  • Universal Electric Fuel Pump
  • Billet Fuel Pressure Regulator
  • Bulk Hose (black) Size 6, ID .375, OD .625 (20 ft.)
  • 100 GPH Billet Fuel Filter 10 micron
  • 100 GPH Billet Fuel Filter 100 micron
  • -6 AN Male to 9/16”-18 O-Ring Port
  • -8 AN Port Plug O-Ring Seal
  • -6 AN Male to 3/4”-16 O-Ring Port
  • Straight Male AN -6 to 3/8” NPT (3 ea.)
  • Straight -6 AN Female Swivel Coupling
  • Super Stock Straight -6 Female to 3/8” Barb (6 ea.)
  • Super Stock 90° -6 Female to 3/8” Barb (2 ea.)
  • -6 Fitting for 12-920 Pump (2 ea.)
  • Fuel Pump Block-Off Plate & Gasket

Not Sure? Review this product documentation before you buy!


Installation Guide
Holley 67 GPH Walbro Fuel System Kit

Fluid Fittings
Fittings IncludedAnodized aluminum fittings provided throughout (Except Fittings into / out of Fuel Tank)
Inlet Size-6 AN to Fuel Pump (Hose Included)
Outlet Size-6 AN Fuel Pump to Regulator (Hose Included)
Return Size-6 AN Regulator to Tank (Hose Not Included)
Fuel Pressure Regulators
Pressure Range15 to 65 PSI
RebuildableYes
StyleReturn Style
Fuel Pumps
Flow Rate (GPH)67
Flow Rate (LPH)255
Fuel SystemEFI
Fuel TypePump Gas/Race Gas
Fuel Filters
Element Material100 micron Stainless steel woven mesh; 10 micron Depth media
Filter TypeOne Pre-Filter, One Post-Filter
Micron Filtration100 Micron Pre-Filter, 10 Micron Post-Filter
Mounting Bracket IncludedNo (Holley Bracket 162-573 Recommended)
Outside Diameter1.5 Inch Diameter (Pre- and Post-Fiter)
General
Also IncludedMechanical Fuel Pump Block-off Plate
ApplicationUniversal
ColorClear and Black Anodized filters, regulator; Brush aluminum pump; Black hose
Emission Code3
MaterialAnodized Aluminum Filters and Regulator; Aluminum Pump
OEM ReplacementNo
Size-6 AN Inlet Line (Return Line Not Included)
Unit of SaleKit
