Holley fuel kits are the perfect addition to your Terminator or Holley kit. They are engineered using Holley fuel pumps, regulators and filters coupled with quality Earl’s plumbing to provide a fuel system tailored to the needs of your Terminator EFI System
Kits do not include hose from the fuel tank to the pre-filter or the return line from the fuel pressure regulator to the tank.
This kit is recommended for pump or race gas use only. The included fuel pump is not compatible with E-85.

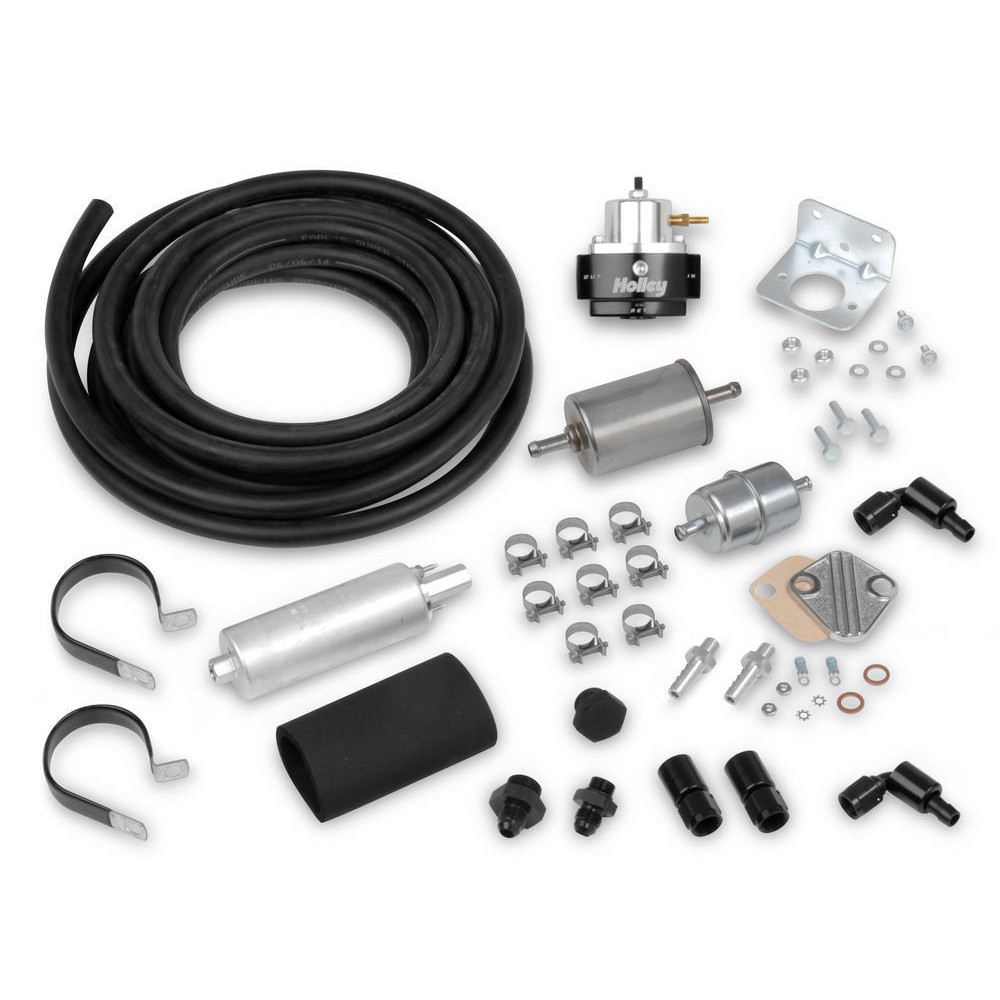

This kit includes:
- Universal Electric Fuel Pump
- Billet Fuel Pressure Regulator
- Bulk Hose (black) Size 6, ID .375, OD .625 (20 ft.)
- Post Fuel Filter 10 micron
- Pre Fuel Filter 20 micron
- -6 AN Male to 9/16”-18 O-Ring Port
- -8 AN Port Plug O-Ring Seal
- -6 AN Male to 3/4”-16 O-Ring Port
- Hose Clamp, Size 8 (8 ea.)
- Super Stock Straight -6 Female to 3/8” Barb (2 ea.)
- Super Stock 90° -6 Female to 3/8” Barb (2 ea.)
- Fuel Pump Block-Off Plate & Gasket
Not Sure? Review this product documentation before you buy!
| Fluid Fittings | |
| Fittings Included | Anodized aluminum fittings (push-on) provided throughout (Except Fittings into / out of Fuel Tank) |
| Inlet Size | -6 AN to Fuel Pump (Hose Included) |
| Outlet Size | -6 AN Fuel Pump to Regulator (Hose Included) |
| Return Size | -6 AN Regulator to Tank (Hose Not Included) |
| Fuel Pressure Regulators | |
| Pressure Range | 15 to 65 PSI |
| Rebuildable | Yes |
| Style | Return Style |
| Fuel Pumps | |
| Flow Rate (GPH) | 67 |
| Flow Rate (LPH) | 255 |
| Fuel System | EFI |
| Fuel Type | Pump Gas/Race Gas |
| Fuel Filters | |
| Element Material | Non-Replaceable |
| Filter Type | One Pre-Filter, One Post-Filter |
| Micron Filtration | 20 Micron Pre-Filter, 10 Micron Post-Filter |
| Mounting Bracket Included | No |
| Outside Diameter | 2.16 Inch Diameter Post-Fiter; 1.94 Inch Pre-Filter |
| General | |
| Also Included | Mechanical Fuel Pump Block-off Plate |
| Application | Universal |
| Color | Anodized Clear steel filters, Anodized Black and Clear Aluminum regulator; Brushed aluminum pump; Black hose |
| Emission Code | 3 |
| Material | Anodized Steel Filters; Anodized Aluminum Regulator; Aluminum Pump |
| OEM Replacement | No |
| Size | -6 AN Inlet Line (Return Line Not Included) |
| Unit of Sale | Kit |
